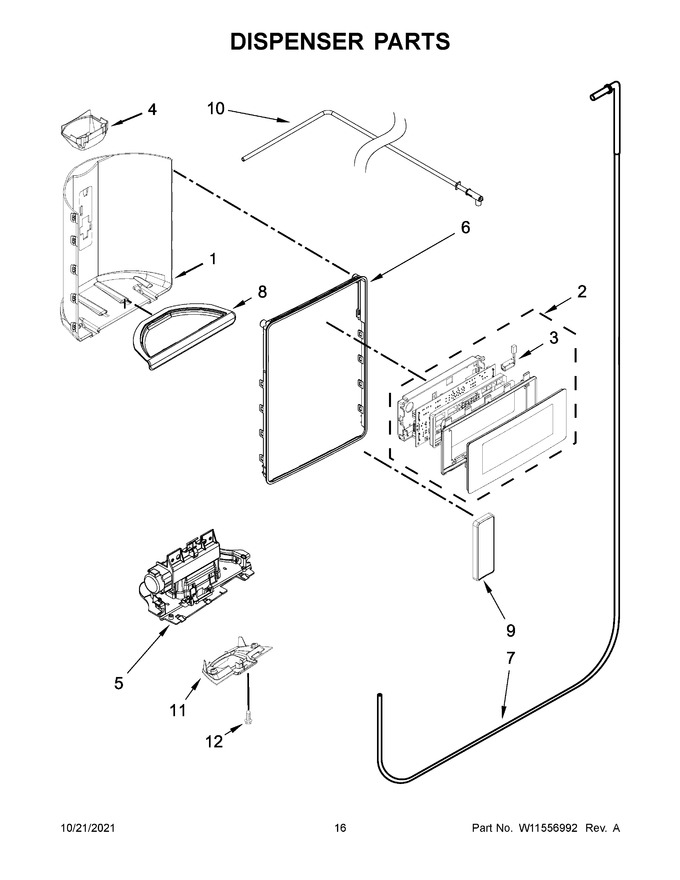

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10520869 | Housing, Dispenser (grey) |
|
$ 109.31 | |||||
| 2 | W11558187 | Electronic Control Assembly (includes Light Feature) (silver) (Replaces: W11384544) |
|
$ 381.01 | |||||
| 3 | W11290115 | Assembly, Led (Replaces: W10470750) |
|
$ 76.01 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 21.55 | ||||
| 5 | W10889430 | Assembly, Seperator (Replaces: W10781995) |
|
$ 143.81 | |||||
| 6 | W10587909 | Trim Ring (grey) |
|
$ 81.96 | |||||
| 7 | W11620106 | Tube, Water (Replaces: W10691730) |
|
$ 106.06 | |||||
| 8 | W10410105 | Grate, Drip Tray (grey) |
|
$ 93.74 | |||||
| 9 | W10348739 | Pad, Ice & Water (silver) |
|
- | |||||
| 10 | W11566468 | Tube, Water (Replaces: W11418502) |
|
Immediately | $ 52.70 | ||||
| 11 | W10549235 | Cover, Seperator |
|
$ 94.47 | |||||
| 12 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 7.36 |
