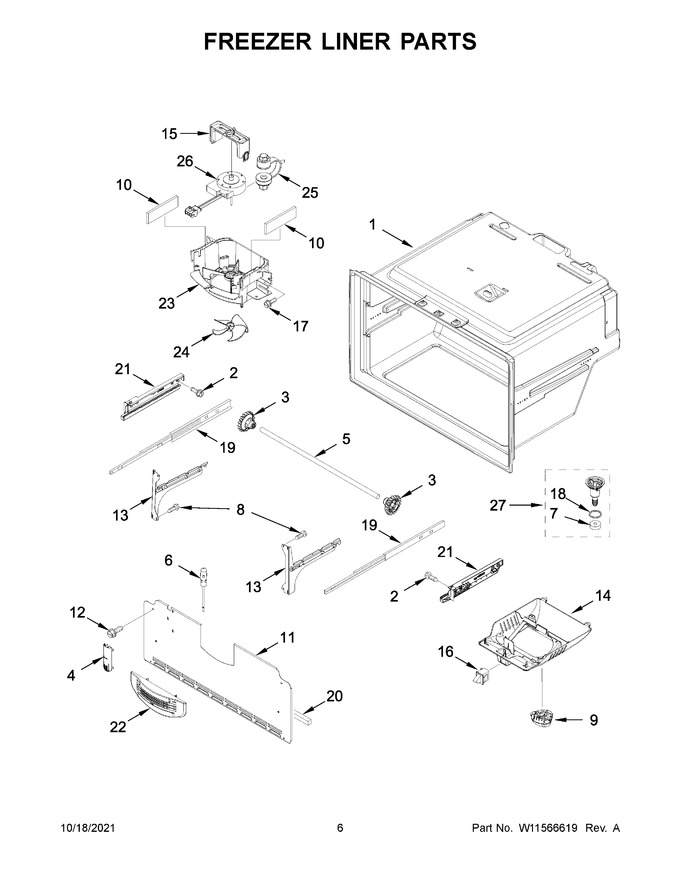

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not Serviced) |
|
- | |||||
| 2 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 7.70 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 20.26 | ||||
| 4 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.39 | |||||
| 5 | W11028221 | Shaft, Rack (Replaces: W10802332) |
|
$ 29.92 | |||||
| 6 | 12002355 | Thermistor (Replaces: 12791406SP) |
|
Immediately | $ 44.10 | ||||
| 7 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.00 | |||||
| 8 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 9 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
$ 38.37 | |||||
| 10 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.25 | ||||
| 11 | W10308421 | Cover, Evaporator |
|
$ 261.95 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 13 | WPW10330994 | Bracket, Door (left Hand) (Replaces: W10330994) |
|
Immediately | $ 152.12 | ||||
| 14 | W11434460 | Module, Light (Replaces: W11328652) |
|
Immediately | $ 33.53 | ||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 12956601) |
|
Immediately | $ 11.02 | ||||
| 16 | W11445850 | Switch, Light (Replaces: W11385734) |
|
Immediately | $ 47.36 | ||||
| 17 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 18 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.32 | |||||
| 19 | W11658403 | Slide, Drawer (Replaces: 13055901) |
|
Immediately | $ 202.73 | ||||
| 20 | W11159728 | Gasket (Replaces: A3189396) |
|
Immediately | $ 25.97 | ||||
| 21 | W10858097 | Adapter (left Hand) (Replaces: W10544957) |
|
$ 109.76 | |||||
| 22 | W11176847 | Grille, Air (Replaces: 12959901) |
|
$ 111.74 | |||||
| 23 | W11700329 | Shroud, Evaporator (Replaces: 12951401) |
|
Immediately | $ 55.08 | ||||
| 24 | WP67006337 | Blade, Fan (Replaces: 12986101) |
|
Immediately | $ 95.05 | ||||
| 25 | W11676465 | Grommet, Fan Motor (Replaces: 12951101) |
|
Immediately | $ 14.00 | ||||
| 26 | W11556914 | Motor, Evaporator (includes Wire Harness And Thermistor) (Replaces: W11314193) |
|
$ 196.47 | |||||
| 27 | W10815413 | Assembly, Drain Funnel (Replaces: W10662407) |
|
Immediately | $ 46.35 | ||||
| 13A | WPW10330995 | Bracket, Door (right Hand) (Replaces: W10330995) |
|
Immediately | $ 306.55 | ||||
| 21A | W10857648 | Adapter (right Hand) (Replaces: W10544958) |
|
$ 112.29 |
