View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts

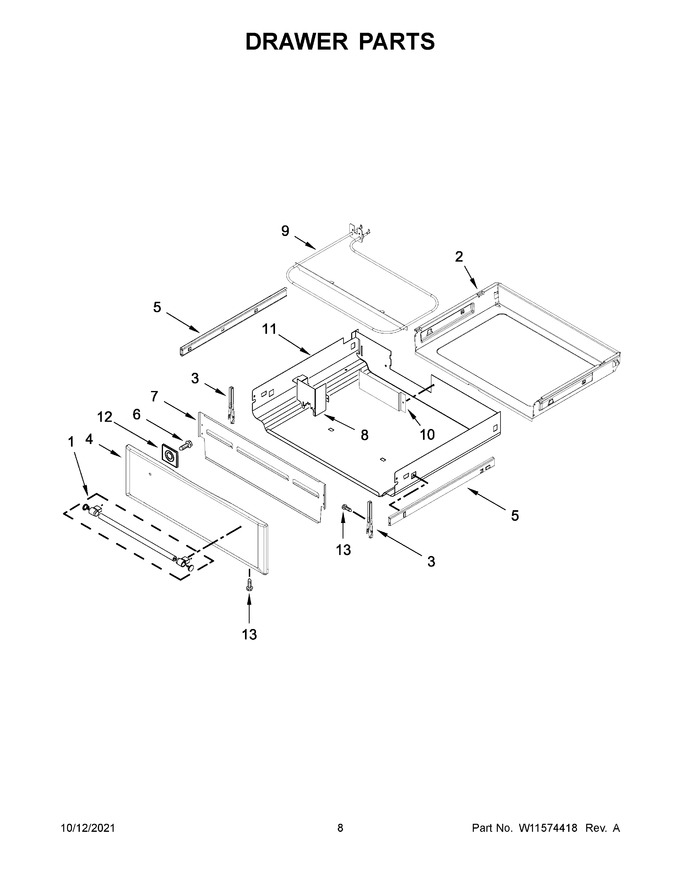

05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10912640 | Handle, Oven Door (stainless) (Replaces: W10834521) |
|
$ 204.62 | |||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 124.34 | ||||
| 3 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 35.34 | |||||
| 4 | W11049639 | Panel, Drawer Front (stainless) (Replaces: W10865703) |
|
Immediately | $ 189.97 | ||||
| 5 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 97.38 | ||||
| 6 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.90 | ||||
| 7 | W10748082 | Panel, Inner |
|
$ 183.96 | |||||
| 8 | W10634259 | Cover, Wire |
|
$ 79.06 | |||||
| 9 | WPW10323181 | Element, Warm (Replaces: W10323181) |
|
$ 118.87 | |||||
| 10 | W10727084 | Cover, Gas Valve |
|
$ 78.82 | |||||
| 11 | W10634260 | Enclosure, Warming |
|
Immediately | $ 188.12 | ||||
| 12 | 3823F01745 | Spacer, Handle |
|
- | |||||
| 13 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 5A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 97.32 |
