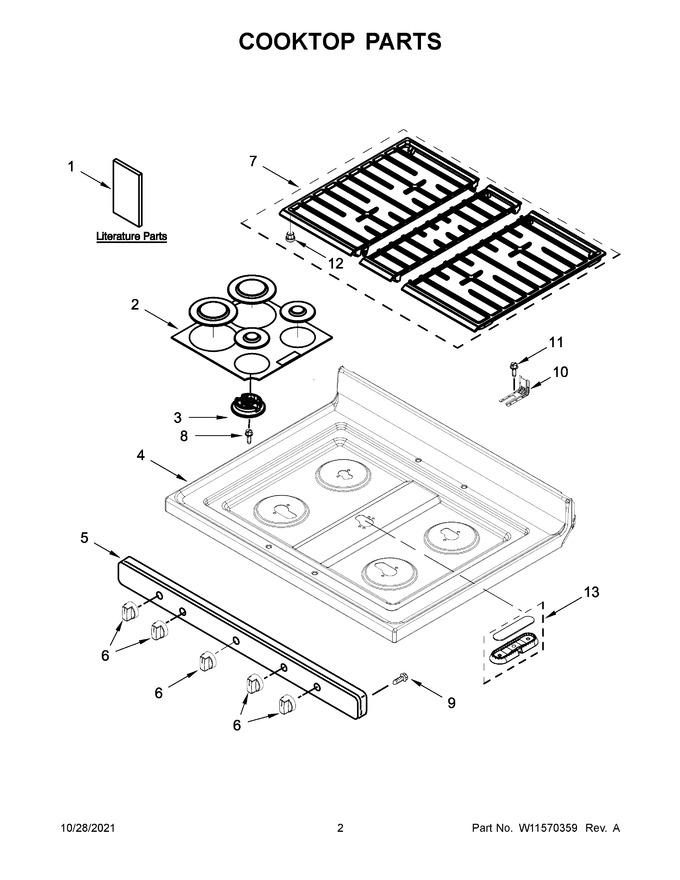

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11450808		Owners Manual		Appelez-nous	-
2	W11834859		Burner Cap Kit (black (set Of 4))   (Replaces: W11352138)		Appelez-nous	-
3	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 73.91
4	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 391.68
5	W11165140		Panel, Manifold (stainless)   (Replaces: W11044911)				$ 325.58
6	W11159630		Knob, Control (stainless)   (Replaces: W11023139)			Immediately	$ 73.22
7	W11252165		Grate Kit (black (set Of 3))   (Replaces: W11090908)				$ 384.90
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 11.86
13	W11435660		Spreader, Flame   (Replaces: W11367086)			Immediately	$ 88.70
1A	W11524748		Quick Start Guide		Appelez-nous	-
1B	W11523160		Tech Sheet		Appelez-nous	-
3A	W11435659		Spreader, Flame (right Rear)   (Replaces: W11352020)				$ 76.37
3B	W11435657		Spreader, Flame (left Rear)   (Replaces: W11352021)				$ 75.99
5A	W11165142		Panel, Manifold (black Stainless)   (Replaces: W11044910)				$ 326.64
6A	W11239985		Knob, Control (black Stainless)   (Replaces: W11032553)			Immediately	$ 73.02
NI	W11453756		Harness, Main				$ 137.51
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11645866		Harness, Bake/broil   (Replaces: W11450461)				$ 34.64
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
