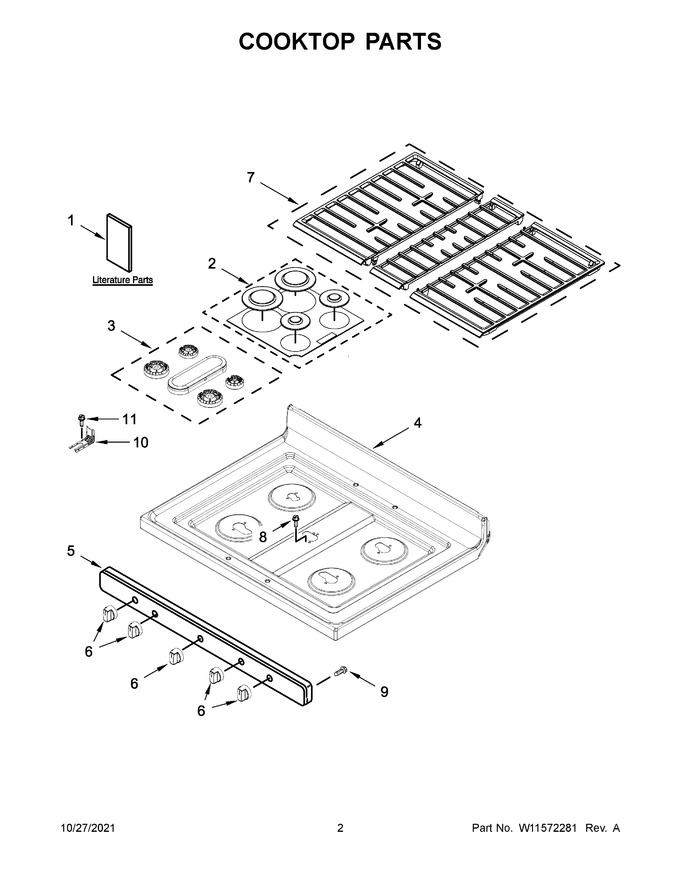

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426600		Owner's Manual		Appelez-nous	-
2	W11455147		Burner Cap Kit (black (set Of 4))   (Replaces: W11395131)			Immediately	$ 89.76
3	W11662402		Burner Kit   (Replaces: W11367107)			Immediately	$ 117.10
4	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 391.68
5	W11165142		Panel, Manifold (black Stainless)   (Replaces: W11044910)				$ 326.64
6	W11239985		Knob, Control (black Stainless)   (Replaces: W11032553)			Immediately	$ 73.02
7	W11252165		Grate Kit (black (set Of 3))   (Replaces: W11090908)				$ 384.90
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
1A	W11401740		Tech Sheet		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11244557		Screw   (Replaces: 3196173)				$ 12.86
NI	W11453753		Harness, Main		Appelez-nous	-
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11645866		Harness, Bake/broil   (Replaces: W11450461)				$ 34.64
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
