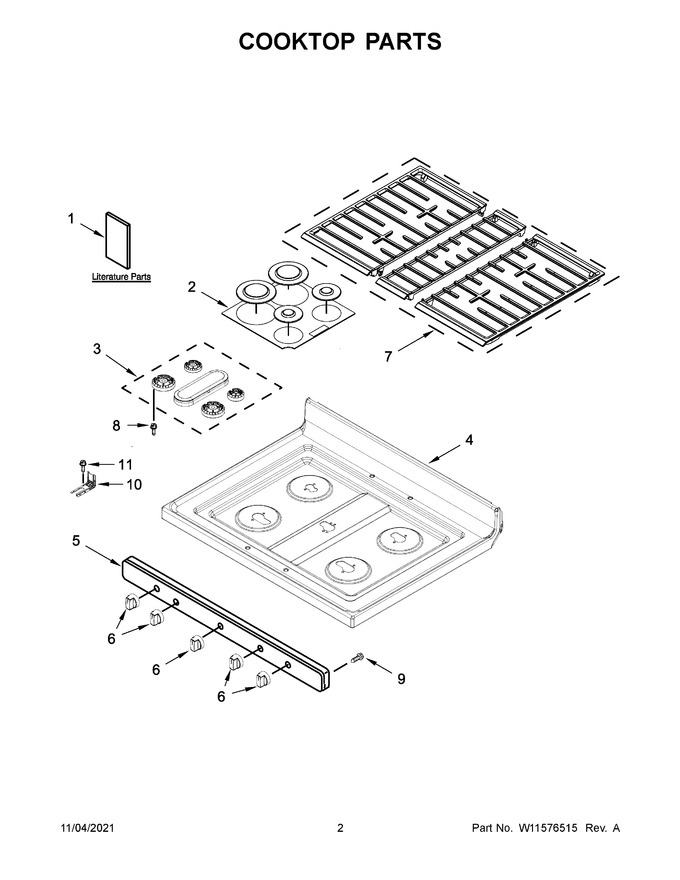

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11426600 | Owner's Manual |
|
- | |||||
| 2 | W11455147 | Set, Burner Cap (black (set Of 4)) (Replaces: W11395131) |
|
Immediately | $ 89.76 | ||||
| 3 | W11662402 | Burner Kit (Replaces: W11367107) |
|
Immediately | $ 117.10 | ||||
| 4 | W11454367 | Cooktop (black) (Replaces: W11418086) |
|
Immediately | $ 391.68 | ||||
| 5 | W11159626 | Panel, Manifold (stainless) (Replaces: W11050776) |
|
- | |||||
| 6 | W11159630 | Knob, Control (stainless) (Replaces: W11023139) |
|
Immediately | $ 73.22 | ||||
| 7 | W11252165 | Grate Kit (black (set Of 3)) (Replaces: W11090908) |
|
$ 384.90 | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 25.69 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 1A | W11530282 | Quick Start Guide |
|
- | |||||
| 1B | W11401740 | Tech Sheet |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W11645866 | Harness, Bake/broil (Replaces: W11450461) |
|
$ 34.64 | |||||
| NI | W11453756 | Harness, Main |
|
$ 137.51 | |||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- |
