01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts
04 - Dispenser Parts

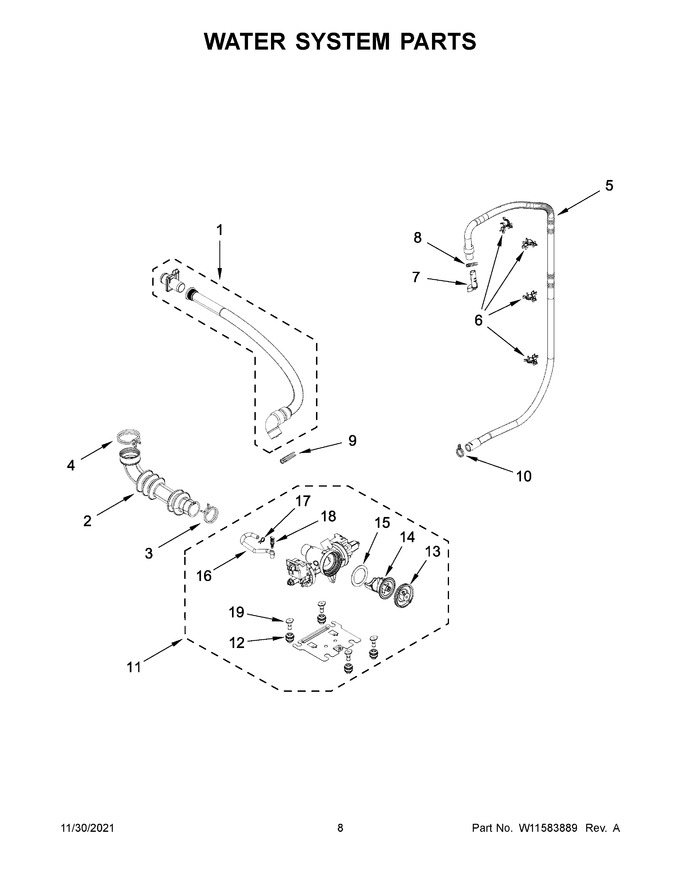

05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11549455 | Assembly, Drain Hose (Replaces: W11507443) |
|
Immediately | $ 32.67 | ||||
| 2 | W11314666 | Hose, Tub To Pump (Replaces: W11216718) |
|
$ 32.00 | |||||
| 3 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 7.72 | ||||
| 4 | W10273034 | Clamp, Vent Hose |
|
$ 10.10 | |||||
| 5 | W11316605 | Hose, Pump To Bellow (Replaces: W11170933) |
|
$ 31.97 | |||||
| 6 | W11316608 | Clip, Hose (Replaces: W11050231) |
|
- | |||||
| 7 | W11316251 | Nozzle, Water (Replaces: W10796538) |
|
$ 80.87 | |||||
| 8 | WP596669 | Clamp, Hose (Replaces: 9724996) |
|
Immediately | $ 7.94 | ||||
| 9 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 10 | W11316607 | Clamp, Hose (Replaces: 8533888) |
|
Immediately | $ 20.90 | ||||
| 11 | W11458345 | Assembly, Pump (Replaces: W11319789) |
|
Immediately | $ 292.84 | ||||
| 12 | W11316663 | Grommet (pump) (Replaces: W11126910) |
|
$ 20.24 | |||||
| 13 | W11316610 | Cap, Filter (Replaces: W10921834) |
|
$ 52.66 | |||||
| 14 | W11458347 | Filter, Pump (Replaces: W11319788) |
|
$ 8.75 | |||||
| 15 | W11316613 | Seal, Filter Cap (Replaces: W10921839) |
|
$ 20.95 | |||||
| 16 | W11316662 | Hose, Drain (pump) (Replaces: W10782741) |
|
Immediately | $ 30.39 | ||||
| 17 | W11316666 | Clamp, Hose (Replaces: W10834076) |
|
- | |||||
| 18 | W11316669 | Plug, Drain (pump) (Replaces: W10834077) |
|
$ 20.85 | |||||
| 19 | W11316664 | Grommet, Pin (pump) (Replaces: W11133160) |
|
$ 20.16 |
