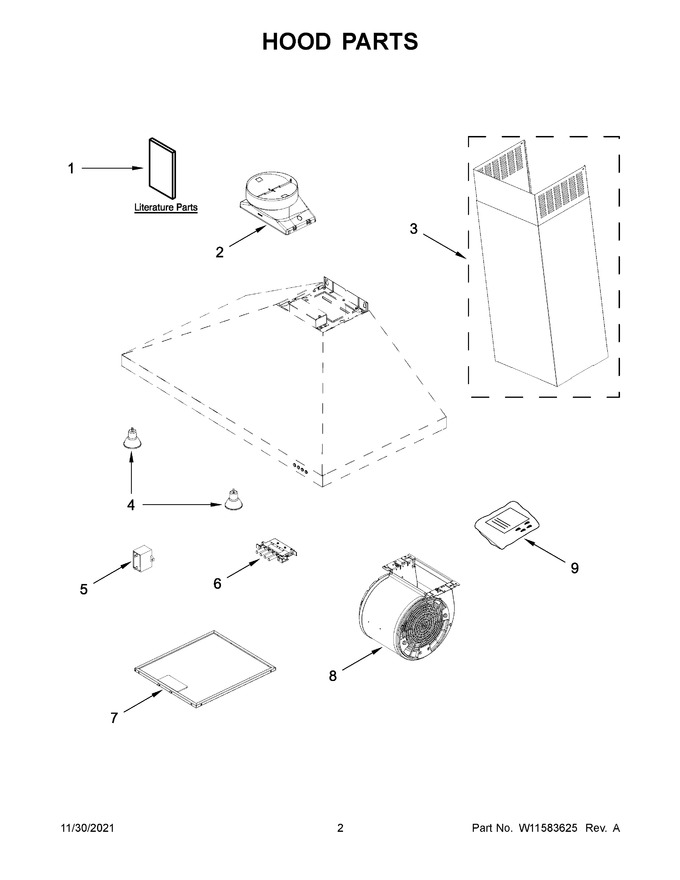

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11374530 | Use And Care Guide |
|
- | |||||
| 2 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 147.46 | |||||
| 3 | W11417192 | Chimney, Upper And Lower (Replaces: W11354650) |
|
$ 338.23 | |||||
| 4 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 78.87 | ||||
| 5 | W11245981 | Capacitor (15 Mf) |
|
$ 61.16 | |||||
| 6 | W11245985 | Control, Electronic |
|
$ 166.21 | |||||
| 7 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 39.53 | ||||
| 8 | WPW10350820 | Assembly, Blower Motor (Replaces: W10350820) |
|
$ 466.18 | |||||
| 9 | W11245986 | Hardware, Insatllation |
|
$ 115.22 | |||||
| 5A | W11245982 | Capacitor (16 Mf) |
|
$ 61.49 | |||||
| 5B | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 91.53 |
