01 - Cover Sheet

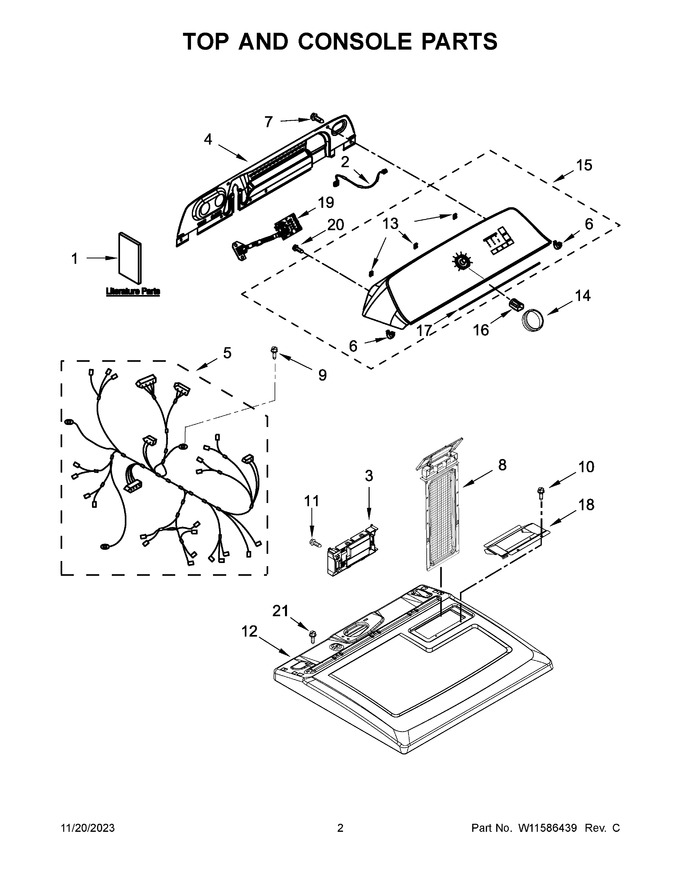

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11361424 | Owners Manual |
|
- | |||||
| 2 | W11469485 | Hmi Harness |
|
- | |||||
| 3 | W11728018 | Appliance Control Unit (acu) (Replaces: W11581955) |
|
$ 298.80 | |||||
| 4 | W10775189 | Panel, Rear |
|
$ 351.12 | |||||
| 5 | W11591404 | Harness, Main (Replaces: W11448302) |
|
$ 181.36 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 7 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 8 | W11778254 | Lint Screen (white) (Replaces: W11451393) |
|
Immediately | $ 49.17 | ||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 11 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 12 | W11222514 | Top (white) (Replaces: W10613389) |
|
Immediately | $ 244.23 | ||||
| 13 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 14 | W11662669 | Knob Assembly (Replaces: W11430050) |
|
Immediately | $ 32.28 | ||||
| 15 | W11595209 | Assembly, Console (white) (Replaces: W11394096) |
|
$ 298.94 | |||||
| 16 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 17 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 18 | W10662472 | Collar, Lint Chute |
|
$ 70.08 | |||||
| 19 | W11627521 | Encoder, Mega Assembly (Replaces: W11374901) |
|
Immediately | $ 291.07 | ||||
| 20 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 21 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 1A | W11565129 | Tech Sheet |
|
- | |||||
| 1B | W11423864 | Quick Start Guide |
|
- |
