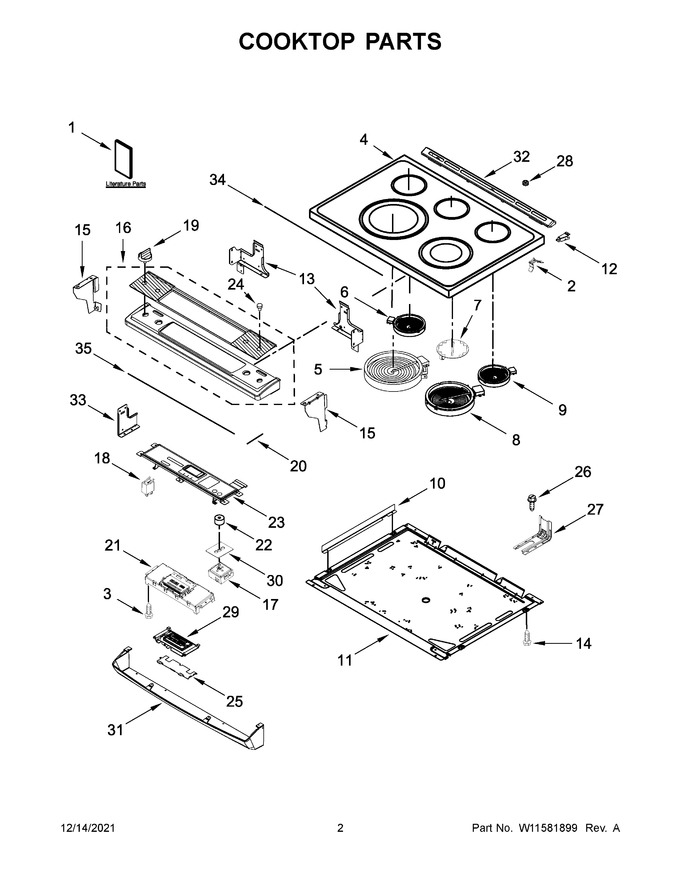

02 - Cooktop Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11509603		Owners Manual		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
4	W11112610		Cooktop (black)   (Replaces: W10865119)				$ 656.00
5	W10823720		Element (3000w) (left Front)   (Replaces: W10187839)			Immediately	$ 348.12
6	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 151.61
7	W11041453		Element, Warm Zone (center)   (Replaces: W10799048)				$ 119.66
8	W11517959		Element (3000w Dual) (left Front, Right Front)   (Replaces: W11282542)			Immediately	$ 132.01
9	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: 8273994)			Immediately	$ 203.06
10	W11175271		Bracket, Radiant				$ 70.12
11	W10536275		Pan, Radiant				$ 163.45
12	W10162253		Brace, Corner (left)				$ 66.72
13	W10289170		Support, Cooktop (left)				$ 27.05
14	W11244557		Screw   (Replaces: 3196173)				$ 12.86
15	W10547960		Bracket, Console (left)				$ 20.90
16	W11564645		Console (stainless)   (Replaces: W11527532)			Immediately	$ 352.80
17	W11129442		Switch, Infinite (left Front)   (Replaces: W10437097)			Immediately	$ 98.78
18	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
19	W11517331		Knob (stainless)   (Replaces: W10850027)			Immediately	$ 59.57
20	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 20.63
21	W11564644		Control, Electronic (maxwell)   (Replaces: W11527165)			Immediately	$ 452.12
22	W10702912		Gasket, Switch Stem				$ 26.84
23	W11564643		Overlay, Active (black)   (Replaces: W11527906)			Immediately	$ 334.95
24	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
25	W10558372		Bracket, Control				$ 22.59
26	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
27	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 20.73
28	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 19.77
29	W11122852		Assembly, Display   (Replaces: W10759327)			Immediately	$ 474.88
30	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
31	W11218703		Console, Lower Panel (black)   (Replaces: W10570527)			Immediately	$ 146.04
32	W11240519		Vent, Trim Top (black)   (Replaces: W10636528)				$ 141.47
33	W10598048		Bracket, Console (center)				$ 23.16
34	W10802441		Gasket, Console/ Cooktop   (Replaces: W10612719)			Immediately	$ 20.46
35	W10802457		Gasket, Console   (Replaces: W10689101)				$ 19.20
12A	W10162252		Brace, Corner (right)				$ 70.73
13A	W10289169		Support, Cooktop (right)				$ 27.05
15A	W10547961		Bracket, Console (right)				$ 20.90
17A	W10857622		Switch, Infinite (left Front, Right Front)   (Replaces: W10437092)			Immediately	$ 215.89
17B	W10911303		Switch, Infinite (left Rear, Right Rear)   (Replaces: W10578768)			Immediately	$ 103.74
17C	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 116.42
1A	W11524749		Quick Start Guide		Appelez-nous	-
1B	W11523161		Tech Sheet		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W11761836		Harness, Main   (Replaces: W11454497)		Appelez-nous	-
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 67.76
NI	W10664316		Clip, Harness (cooktop)				$ 18.87
NI	W11226772		Harness, Display   (Replaces: W11172426)			Immediately	$ 213.24
NI	W11226773		Harness, Console   (Replaces: W11172417)				$ 190.53
NI	W11226786		Harness, Cooktop   (Replaces: W11134658)			Immediately	$ 217.58
NI	NP		Cabinet (not Serviced)		Appelez-nous	-
