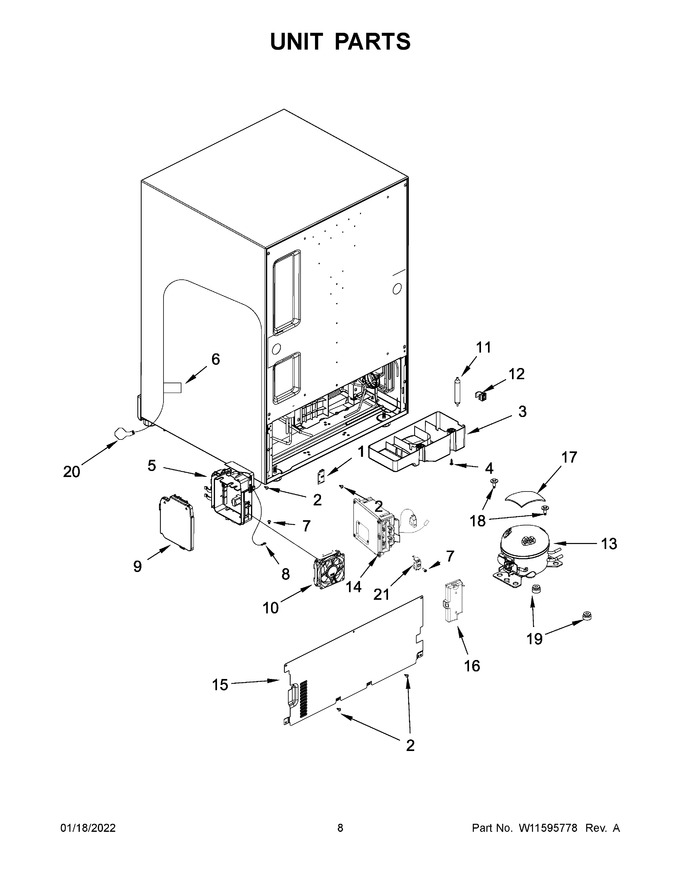

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11579515		Clamp, Cord   (Replaces: W11576947)		Appelez-nous	-
2	W11371097		Screw		Appelez-nous	-
3	W11360241		Water Pan, Evaporator		Appelez-nous	-
4	W11375763		Screw		Appelez-nous	-
5	W11690305		Main Pcb   (Replaces: W11580234)				$ 654.43
6	W11618463		Tag, Power Cord   (Replaces: W11577175)			Immediately	$ 119.22
7	4344826		Screw				$ 15.03
8	W11266077		Washer   (Replaces: W11265570)		Appelez-nous	-
9	W11313206		Cover, Pcb				$ 73.67
10	W11360536		Assembly, Fan Motor				$ 194.29
11	W10163273		Drier				$ 93.07
12	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
13	W11596028		Compressor   (Replaces: W11580235)				$ 355.33
14	W11592422		Ib Box Assembly   (Replaces: W11580236)			Immediately	$ 347.90
15	W11580243		Cover, Panel		Appelez-nous	-
16	W11360590		Cover, Side		Appelez-nous	-
17	W11596025		Compressor, Rubber   (Replaces: W11360595)				$ 34.44
18	W11375771		Bolt		Appelez-nous	-
19	W11360596		Mount, Compressor		Appelez-nous	-
20	W11618463		Cord, Power   (Replaces: W11498145)			Immediately	$ 119.22
21	W11360592		Stopper		Appelez-nous	-
NI	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
