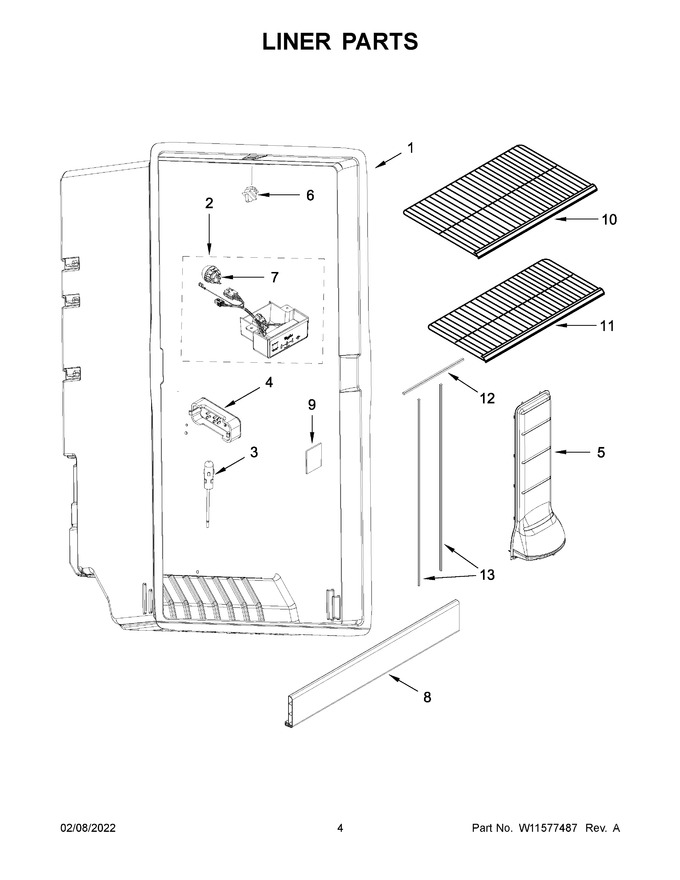

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Trim, Stainless (not Serviced) |
|
- | |||||
| 2 | W11572048 | Assembly, Control (Replaces: W11442543) |
|
$ 184.45 | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 28.11 | |||||
| 5 | W10574403 | Air Tower |
|
- | |||||
| 6 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 22.26 | ||||
| 7 | W11502762 | Module, Led (Replaces: W11254095) |
|
$ 32.13 | |||||
| 8 | W10581588 | Trim, Door |
|
$ 80.83 | |||||
| 9 | 160123001 | Cover, Icemaker Hole |
|
- | |||||
| 10 | W10836976 | Wire Shelf, Deep (Replaces: W10569280) |
|
Immediately | $ 156.34 | ||||
| 11 | W10838567 | Wire Shelf, Shallow (Replaces: W10569281) |
|
Immediately | $ 82.62 | ||||
| 12 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.88 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574563) |
|
$ 7.88 |
