SELECT A DIAGRAM
01 - Cover Sheet

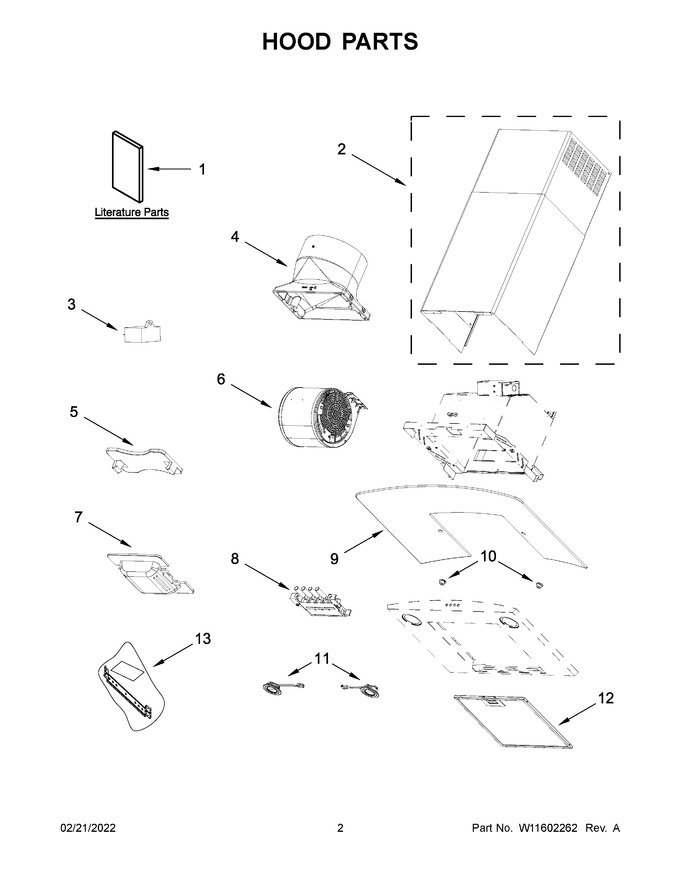

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11549253 | Use And Care Guide |
|
- | |||||
| 2 | W11590865 | Chimney, Upper And Lower (Replaces: W11328682) |
|
$ 350.33 | |||||
| 3 | W11328673 | Capacitor |
|
Immediately | $ 59.00 | ||||
| 4 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 147.46 | |||||
| 5 | W11568816 | Grommet, Cord (Replaces: W11568256) |
|
- | |||||
| 6 | WPW10291577 | Assembly, Fan (Replaces: W10291577) |
|
$ 485.51 | |||||
| 7 | W11568814 | Cover, Cable Box (Replaces: W11568248) |
|
- | |||||
| 8 | W11568742 | Control, Electronic (Replaces: W11568250) |
|
$ 305.46 | |||||
| 9 | W11568818 | Glass (30" Model) (Replaces: W11568261) |
|
$ 346.51 | |||||
| 10 | W11568817 | Bushing, Glass (Replaces: W11568257) |
|
- | |||||
| 11 | W11568737 | Lamp, Led (Replaces: W11567769) |
|
$ 128.53 | |||||
| 12 | WP8190836 | Filter, Grease (Replaces: 8190836) |
|
Immediately | $ 114.70 | ||||
| 13 | W11568262 | Hardware, Installation |
|
Immediately | $ 90.01 | ||||
| 9A | W11601397 | Glass (36" Model) (Replaces: W11600303) |
|
- |
