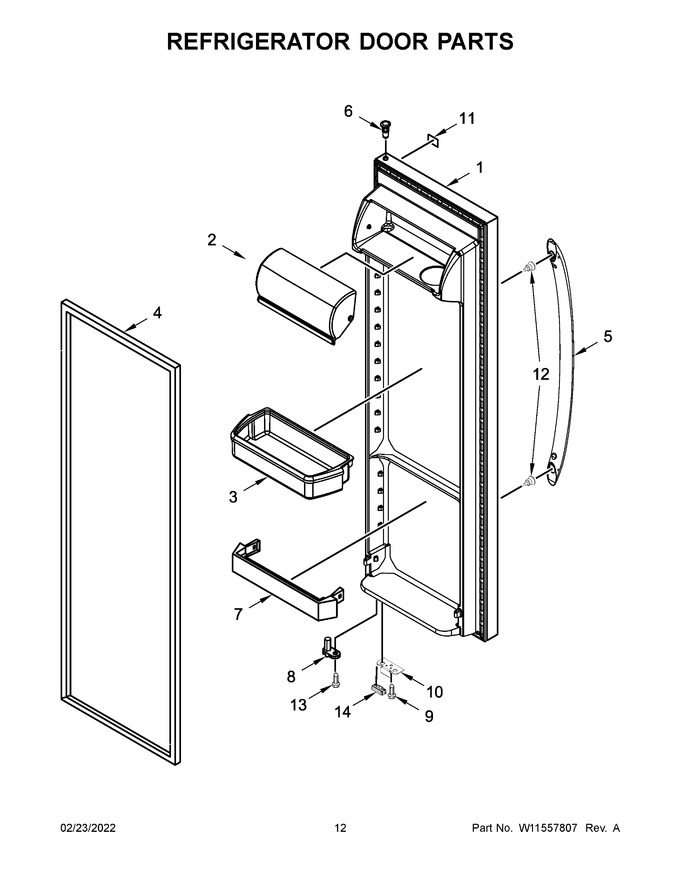

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10912118		Door, Refrigerator (includes Door Gasket) (white)   (Replaces: W10912118)				$ 780.50
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 80.48
3	W11174793		Bin, Door   (Replaces: W11034658)				$ 144.92
4	2159075		Gasket, Door (beige)   (Replaces: W10911412)			Immediately	$ 299.70
5	W11084370		Handle (white)		Appelez-nous	-
6	WP2182181		Thimble   (Replaces: 2200087)				$ 7.34
7	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 68.69
8	W11397972		Thimble, Cam   (Replaces: W10900464)				$ 12.41
9	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
10	W11557261		Bracket, Door Stop (black)   (Replaces: W10900463)			Immediately	$ 16.80
11	W10337740		Badge		Appelez-nous	-
12	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
13	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
14	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 13.44
14A	W10407187		Bumper, Door (black)				$ 43.51
14B	W11573367		Bumper, Door (grey)   (Replaces: W10407188)			Immediately	$ 21.02
1A	LW10912126		Door, Refrigerator (includes Door Gasket) (black)   (Replaces: W10912126)				$ 762.36
1B	LW10912075		Door, Refrigerator (includes Door Gasket) (stainless)   (Replaces: W10912075)				$ 739.30
4A	2159083		Gasket, Door (black)   (Replaces: W10911422)				$ 299.48
4B	WPW10136734		Gasket, Door (grey)   (Replaces: W10911389)				$ 301.85
5A	W11084369		Handle (black)		Appelez-nous	-
5B	W10899551		Handle (stainless)   (Replaces: W10713676)			Immediately	$ 169.94
