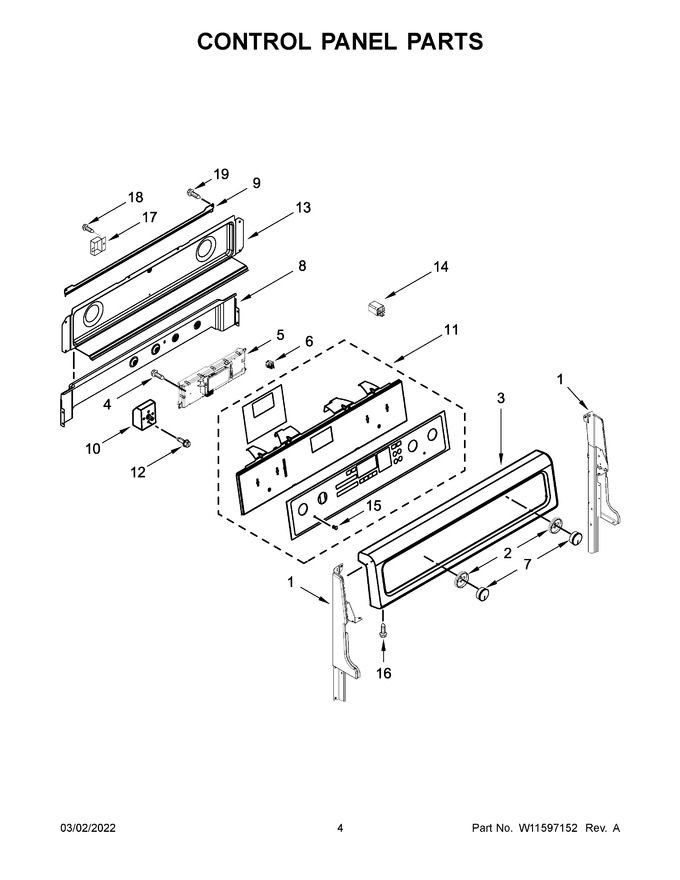

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left))				$ 83.56
2	W10850042		Bezel (stainless)			Immediately	$ 58.73
3	WPW10318550		Console (stainless)   (Replaces: W10318550)				$ 245.91
4	7101P43460		Screw		Appelez-nous	-
5	W11594156		Control, Maxwell Electronic   (Replaces: W11515091)			Immediately	$ 344.33
6	7407P13660		Light, Indicator		Appelez-nous	-
7	W11517335		Knob (chrome)   (Replaces: W10850040)			Immediately	$ 19.39
8	W10278697		Shield, Vent			Immediately	$ 165.00
9	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 86.94
10	W11129442		Switch, Infinite (left Front)   (Replaces: W10437097)			Immediately	$ 103.71
11	W11594155		Assembly, Membrane (including Bracket) (stainless)   (Replaces: W11527484)			Immediately	$ 282.96
12	W10674068		Screw				$ 21.95
13	W10776098		Cover, Backguard				$ 122.23
14	W10326400		Relay (12v)				$ 70.90
15	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.91
16	7101P63360		Screw (black)		Appelez-nous	-
17	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
18	7101P33860		Screw		Appelez-nous	-
19	7101P42660		Screw		Appelez-nous	-
10A	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 116.42
10B	WPW10312185		Switch, Infinite (right Front)   (Replaces: W10312185)			Immediately	$ 145.89
10C	WP7403P238-60		Switch, Infinite (right Rear)   (Replaces: 7403P37360)			Immediately	$ 70.67
1A	W10319111		Support, Backguard (black (right))				$ 43.80

    View Diagram in Separate Window       Print Part List
