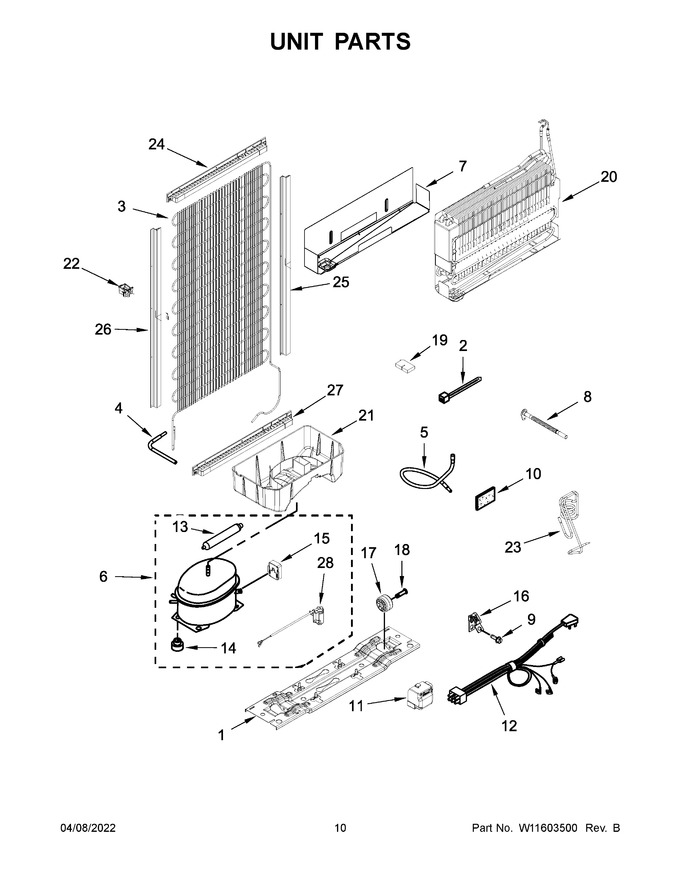

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10378704 | Plate, Compressor Support |
|
$ 60.34 | |||||
| 2 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 3 | W11368894 | Condenser (also Order The Following Lokring Parts) (Replaces: W11246374) |
|
$ 268.78 | |||||
| 4 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 27.41 | |||||
| 5 | W11403094 | Suction Tube, Static (Replaces: W11383830) |
|
$ 57.97 | |||||
| 6 | W11370574 | Compressor (also Order The Following Lokring Parts) (Replaces: W11225065) |
|
Immediately | $ 392.58 | ||||
| 7 | W11179127 | Heat Sheild |
|
$ 38.89 | |||||
| 8 | W11547140 | Extension, Drain Tube (Replaces: W11488945) |
|
$ 94.01 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 10 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 11 | W11342284 | Cover, Terminal Board |
|
$ 92.61 | |||||
| 12 | W11248029 | Assembly, Power Cord |
|
$ 155.99 | |||||
| 13 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 15 | W11643623 | Device, Start (Replaces: W11387715) |
|
$ 117.70 | |||||
| 16 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 19.91 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 19 | W10261299 | Wedge, Evaporator |
|
- | |||||
| 20 | W11368877 | Evaporator Assembly (also Order The Following Lokring Parts) (Replaces: W11514910) |
|
Immediately | $ 332.00 | ||||
| 21 | W11559685 | Tray, Water (Replaces: W11461578) |
|
Immediately | $ 89.96 | ||||
| 22 | WP326020544 | Support, Condenser (Replaces: 326020544) |
|
$ 9.77 | |||||
| 23 | W11528684 | Coil, Discharge (Replaces: W11255016) |
|
$ 40.60 | |||||
| 24 | W11264206 | Condenser, Top Protection |
|
$ 77.95 | |||||
| 25 | W11377937 | Condenser, Side Protection (right) |
|
Immediately | $ 79.29 | ||||
| 26 | W11377938 | Condenser Side Protection (left) |
|
$ 76.60 | |||||
| 27 | W11264207 | Condenser, Bottom Protection |
|
$ 78.03 | |||||
| 28 | W11652060 | Assembly, Capacitor (Replaces: W11358319) |
|
Immediately | $ 84.93 | ||||
| 13A | W11506623 | 5 Nk Ms 00 (drier To Condenser) |
|
Immediately | $ 19.80 | ||||
| 13B | W11504448 | 5/1.8 Nr Al 00 (capillary Tube To Drier) |
|
Immediately | $ 43.72 | ||||
| 20A | W11504419 | (8/7 Nr Al 00) (suction Line To Evaporator) |
|
Immediately | $ 31.67 | ||||
| 20B | W11225184 | 200-mm- Al-00 (aluminum Suction Line Extension) (Replaces: W11187707) |
|
Immediately | $ 64.14 | ||||
| 20C | W11506620 | 8 Nk Al 00 (evaporator To Extension) |
|
Immediately | $ 28.89 | ||||
| 20D | W11504449 | 4/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 33.70 | ||||
| 3A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Condenser) |
|
Immediately | $ 26.03 | ||||
| 3B | W11506623 | 5 Nk Ms 00 (drier To Condenser) |
|
Immediately | $ 19.80 | ||||
| 6A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 23.30 | ||||
| 6B | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 24.42 | ||||
| 6C | W11504416 | 8.5/6 Nr Ms 00 (charging Tube To Compressor) |
|
Immediately | $ 24.76 | ||||
| 6D | W11506635 | Tube, Charging (1/4" W/ Schrader Valve) |
|
Immediately | $ 33.33 | ||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- |
