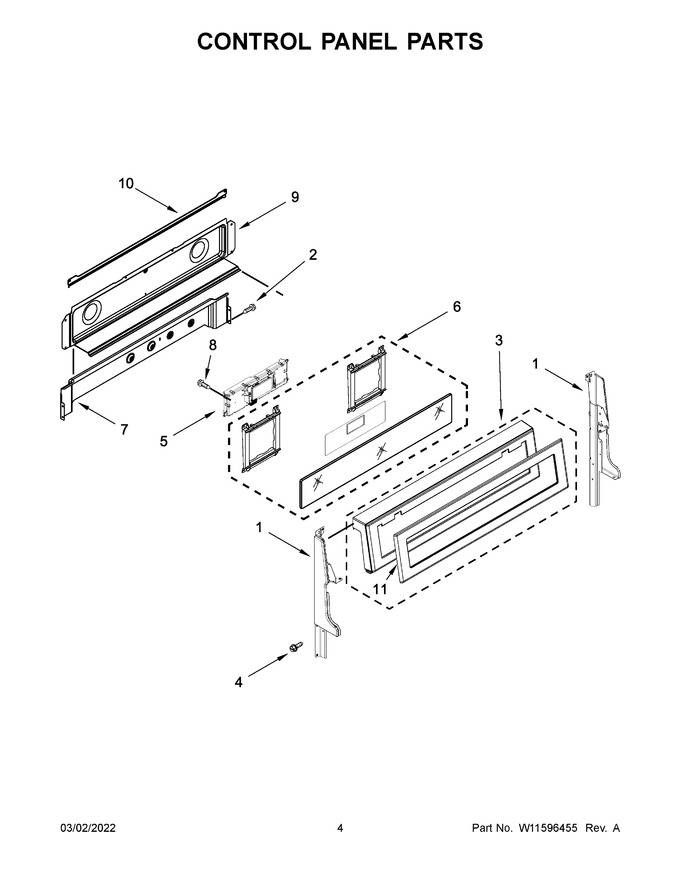

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left)) Special Order $ 83.56

2 7101P42660 Screw Appelez-nous -
3 W11164063 Console (stainless)   (Replaces: W10645848) In-Stock Immediately $ 466.76

4 7101P63460 Screw (stainless Model) Appelez-nous -
5 W11598459 Control, Maxwell Electronic   (Replaces: W10895091) Special Order $ 345.59

6 W10692425 Assembly, User Interface (includes Light Feature) (black) Special Order $ 807.36

7 W10278697 Shield, Vent In-Stock Immediately $ 165.00

8 W11245710 Screw   (Replaces: 9780274) In-Stock Immediately $ 13.28

9 W10776098 Cover, Backguard Special Order $ 122.23

10 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 86.94

11 NP Cabinet (not A Servicable Part) Appelez-nous -
1A W10319111 Support, Backguard (black (right)) Special Order $ 43.80


    View Diagram in Separate Window     Print Icon   Print Part List
