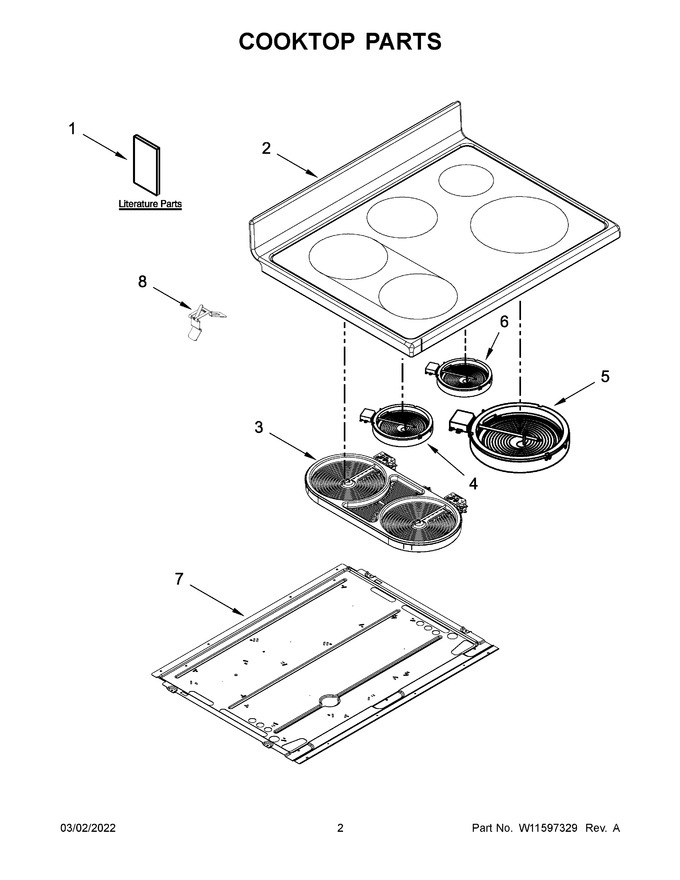

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11427490		Owner's Manual		Appelez-nous	-
2	W11132188		Cooktop (black)   (Replaces: W10902186)				$ 514.78
3	WPW10248259		Element, Bridge (left Front & Left Rear)   (Replaces: W10248259)			Immediately	$ 336.74
4	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 119.66
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 307.76
6	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 213.20
7	WPW10260946		Panel, Element Support   (Replaces: W10260946)				$ 121.59
8	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.82
1A	W11430271		Quick Start Guide		Appelez-nous	-
1B	W11333112		Tech Sheet		Appelez-nous	-
NI	W11172428		Harness, Eol (dofsr)		Appelez-nous	-
NI	W11190468		Harness, Main		Appelez-nous	-
NI	8019P01360		Clip, Wire Lock		Appelez-nous	-
NI	7401P15760		Block, Bare Wire Adapter		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11190467		Harness, Cooktop				$ 219.50
NI	7101P02760		Screw, Ground		Appelez-nous	-
NI	W11217848		Harness, Infinite Switch (right)				$ 180.11
NI	W11217845		Harness, Infinite Switch (left)				$ 181.70
NI	W11172531		Harness, Sensor & Locks			Immediately	$ 107.28
