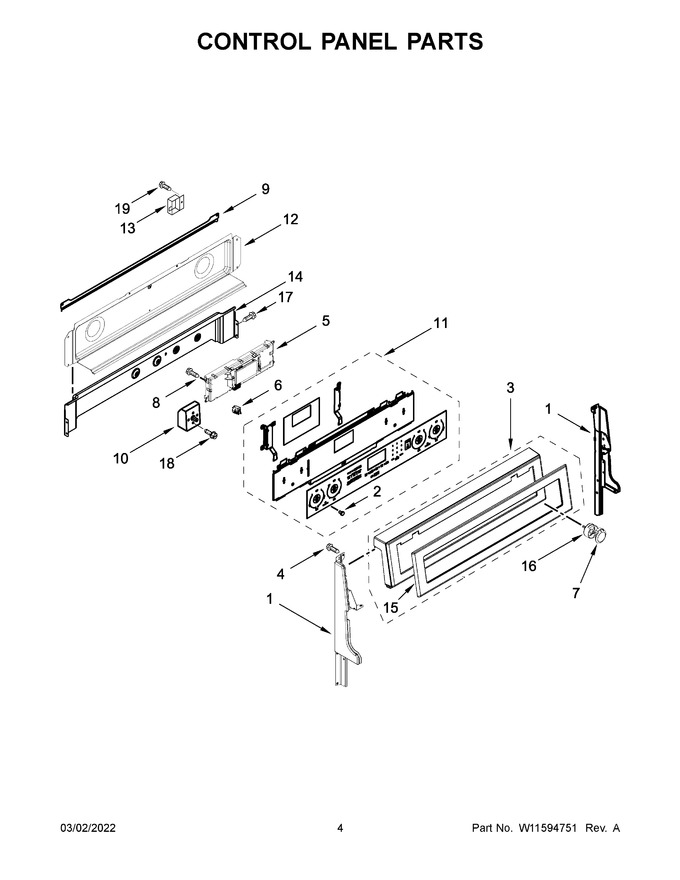

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319110 Support, Backguard (white (left)) Special Order $ 86.36

2 WP3196068 Lens, Indicator   (Replaces: 3196068) In-Stock Immediately $ 5.63

3 W10645847 Console (white) Special Order $ 282.30

4 WPW10241367 Screw   (Replaces: W10241367) Special Order $ 6.27

5 W11594150 Control, Maxwell Electronic   (Replaces: W11515089) In-Stock Immediately $ 344.55

6 7407P13660 Light, Indicator Appelez-nous -
7 W11156487 Knob (stainless)   (Replaces: W10823529) In-Stock Immediately $ 55.13

8 7101P43460 Screw Appelez-nous -
9 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 86.94

10 WPW10296657 Switch, Infinite (left Front)   (Replaces: W10296657) In-Stock Immediately $ 271.73

11 W11527485 Assembly, User Interface (includes Light Feature) (white) Appelez-nous -
12 W10776098 Cover, Backguard Special Order $ 122.23

13 W11819303 Cover, Connector   (Replaces: 8285593) Appelez-nous -
14 W10278697 Shield, Vent In-Stock Immediately $ 165.00

15 NP Cabinet (not A Servicable Part) Appelez-nous -
16 W11368920 Bezel, Knob   (Replaces: W10645811) In-Stock Immediately $ 54.50

17 W11245710 Screw   (Replaces: 9780274) In-Stock Immediately $ 13.28

18 W10674068 Screw Special Order $ 21.95

19 7101P33860 Screw Appelez-nous -
10A WPW10295048 Switch, Infinite (left Rear)   (Replaces: W10295048) In-Stock Immediately $ 143.96

10B WPW10312185 Switch, Infinite (right Front)   (Replaces: W10312185) In-Stock Immediately $ 138.94

10C WP7403P238-60 Switch, Infinite (right Rear)   (Replaces: 7403P37360) In-Stock Immediately $ 67.30

11A W11527486 Assembly, User Interface (includes Light Feature) (black (for Stainless Model Only)) In-Stock Immediately $ 335.64

1A W10319112 Support, Backguard (white (right)) Special Order $ 84.41

1B W10319109 Support, Backguard (black (left)) Special Order $ 83.56

1C W10319111 Support, Backguard (black (right)) Special Order $ 43.80

3A W11164063 Console (stainless)   (Replaces: W10645848) In-Stock Immediately $ 466.76


    View Diagram in Separate Window     Print Icon   Print Part List
