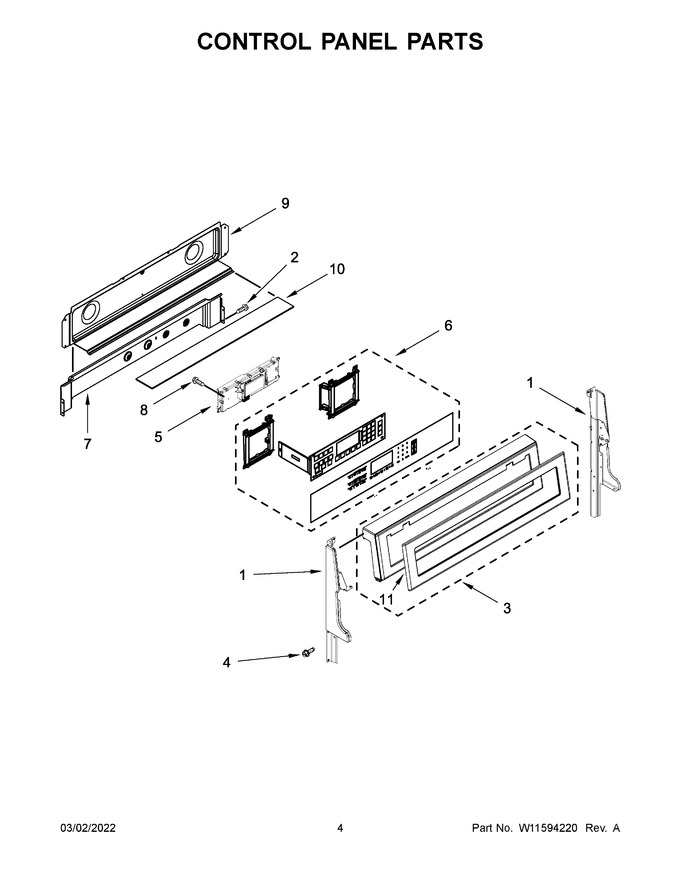

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319110 Support, Backguard (white (left)) Special Order $ 86.36

2 7101P42660 Screw Appelez-nous -
3 W10645847 Console (white) Special Order $ 282.30

4 7101P63460 Screw (stainless Model) Appelez-nous -
5 W10877013 Control, Electronic   (Replaces: W10873168) In-Stock Immediately $ 357.80

6 W11430948 Assembly, User Interface (includes Light Feature) (white)   (Replaces: W10692424) Appelez-nous -
7 W10278697 Shield, Vent In-Stock Immediately $ 165.00

8 W11245710 Screw   (Replaces: 9780274) In-Stock Immediately $ 13.28

9 W10776098 Cover, Backguard Special Order $ 122.23

10 W11684874 Insulation, Wire Cover   (Replaces: W10309232) Special Order $ 32.00

11 NP Cabinet (not A Servicable Part) Appelez-nous -
1A W10319112 Support, Backguard (white (right)) Special Order $ 84.41

1B W10319109 Support, Backguard (black (left)) Special Order $ 83.56

1C W10319111 Support, Backguard (black (right)) Special Order $ 43.80

3A W11164063 Console (stainless)   (Replaces: W10645848) In-Stock Immediately $ 466.76

6A W11430942 Assembly, User Interface (includes Light Feature) (black)   (Replaces: W10619109) Special Order $ 772.75


    View Diagram in Separate Window     Print Icon   Print Part List
