SELECT A DIAGRAM

01 - Cover Sheet

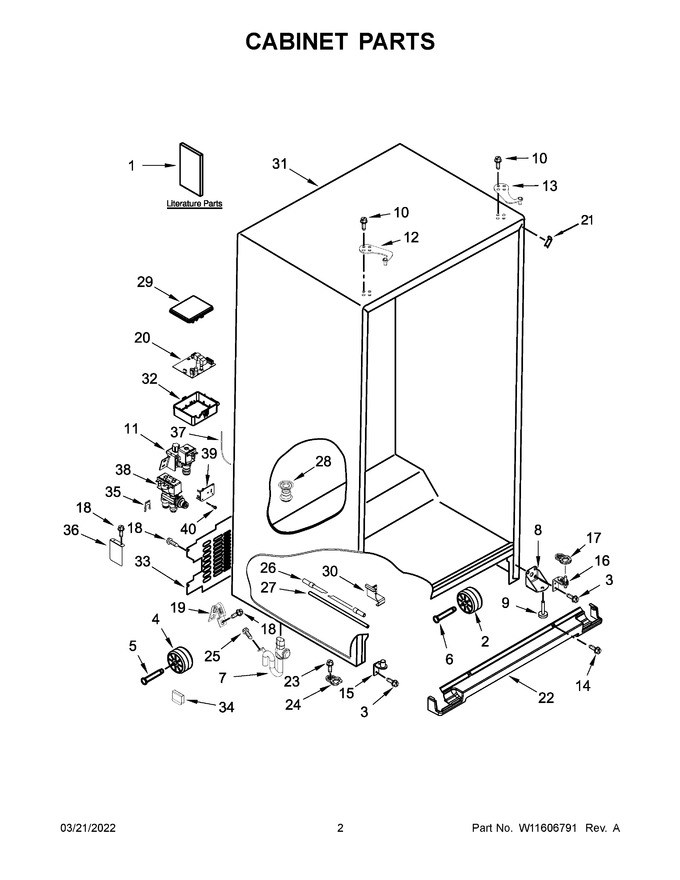

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11484052		Use & Care Guide		Appelez-nous	-
2	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
3	WPW10297485		Screw   (Replaces: W10297485)				$ 7.56
4	12477102		Roller			Immediately	$ 6.64
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.11
6	W11208384		Rivet, Roller   (Replaces: 981125)				$ 16.86
7	W11519143		Tube, Drain   (Replaces: W11293073)				$ 34.52
8	W11266052		Bracket, Foot   (Replaces: W10900758)				$ 59.68
9	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.42
10	W11579735		Screw, Hinge   (Replaces: W10290781)			Immediately	$ 13.26
11	W11512399		Valve, Inlet   (Replaces: W11451511)			Immediately	$ 46.10
12	W11590581		Hinge, Top (freezer) (grey)   (Replaces: W10901054)				$ 22.44
13	W11409290		Hinge, Top (refrigerator) (grey)   (Replaces: W10901049)				$ 63.43
14	WPW10308489		Screw (grey)   (Replaces: W10308489)			Immediately	$ 7.36
15	W10249952		Hinge, Bottom (freezer) (grey)				$ 85.56
16	W11292872		Hinge, Bottom (refrigerator - Also Includes Door Cam) (grey)   (Replaces: W11084346)				$ 64.88
17	W11311687		Closer, Door (refrigerator) (grey)   (Replaces: W10877804)				$ 12.66
18	WPW10141645		Screw   (Replaces: W10141645)				$ 7.25
19	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 19.91
20	W11620204		Cntrl-elec   (Replaces: W11440350)			Immediately	$ 299.39
21	WP12587703AP		Filler, Wrapper (grey)   (Replaces: 12587703AP)				$ 7.26
22	WPW10713153		Grille (grey)   (Replaces: W10713153)			Immediately	$ 121.97
23	WP489483		Screw   (Replaces: W10142234)				$ 10.27
24	W10876191		Closer, Door (freezer) (grey)   (Replaces: W10770893)				$ 16.18
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
26	WPW10279882		Tube, Filter Inlet   (Replaces: W10279882)				$ 102.81
27	WPW10279885		Tube, Filter Outlet   (Replaces: W10279885)				$ 115.87
28	W10247979		Fitting, Drain				$ 61.04
29	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 76.64
30	W10499011		Assembly, Bracket			Immediately	$ 62.69
31	NP		Cabinet (not Serviced)		Appelez-nous	-
32	WPW10247993		Box, Control   (Replaces: W10247993)				$ 107.20
33	W11453073		Cover, Unit				$ 61.43
34	W11545866		Clip, Axle Retainer   (Replaces: 2223388)				$ 10.69
35	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 13.40
36	W10336736		Cover, Roller		Appelez-nous	-
37	WPW10238092		Tube, Water   (Replaces: W10238092)			Immediately	$ 119.02
38	WPW10341320		Assembly, Dual Water Valve   (Replaces: W10341320)			Immediately	$ 249.17
39	W10847867		Bracket, Water Valve   (Replaces: W10237915)				$ 72.68
40	WPW10141625		Screw   (Replaces: W10141625)				$ 20.00
12A	W10901052		Hinge, Top (freezer) (black)				$ 68.98
13A	W11568758		Hinge, Top (refrigerator) (black)   (Replaces: W10901047)				$ 23.06
14A	WP98008545		Screw (black)   (Replaces: W10308487)				$ 16.74
15A	W10249950		Hinge, Bottom (freezer) (black)		Appelez-nous	-
16A	W11311416		Hinge, Bottom (refrigerator - Also Includes Door Cam) (black)   (Replaces: W11084348)				$ 63.88
17A	W11311686		Closer, Door (refrigerator) (black)   (Replaces: W10877807)				$ 12.62
1A	W11461592		Tech Sheet		Appelez-nous	-
1B	W11559384		Energy Guide		Appelez-nous	-
21A	67003485		Filler, Wrapper (black)   (Replaces: 12587703B)			Immediately	$ 19.93
22A	WPW10713158		Grille (black)   (Replaces: W10713158)				$ 88.58
24A	W10770895		Closer, Door (freezer) (black)				$ 14.20
35A	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 13.41
