Diagram # Part Number Description Series Availability Ships Price Add to Cart

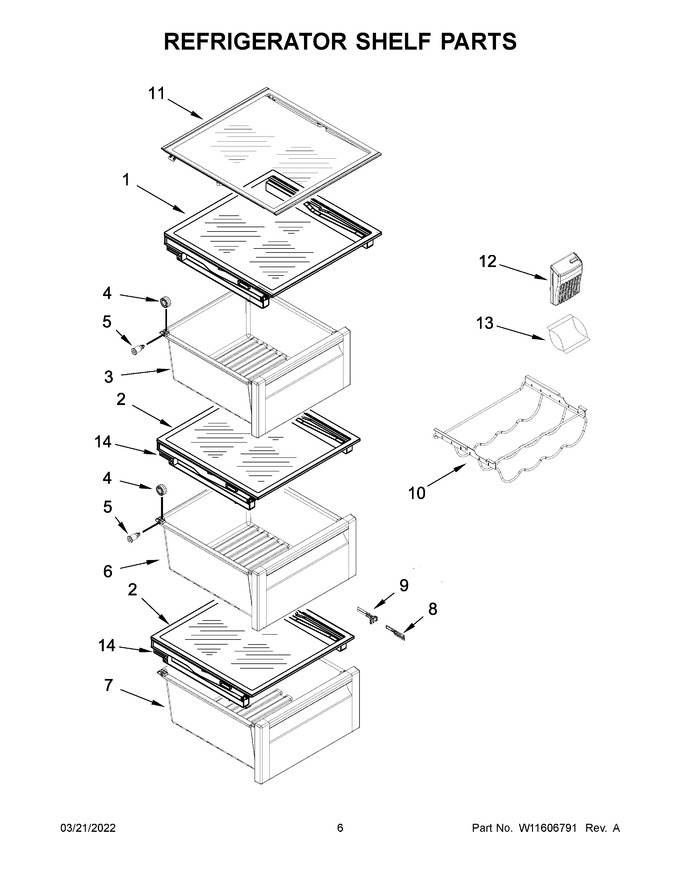

1 WPW10387390 Shelf, Snack Pan   (Replaces: W10387390) Special Order $ 238.64

2 W10362173 Assembly, Cover Special Order $ 227.35

3 WPW10542033 Snack Pan   (Replaces: W10542033) Special Order $ 254.98

4 W11164152 Roller, Pan   (Replaces: W10628713) In-Stock Immediately $ 14.17

5 W11175807 Axle, Roller   (Replaces: W10628712) In-Stock Immediately $ 16.11

6 WPW10531078 Crisper Pan   (Replaces: W10531078) Special Order $ 173.15

7 WPW10531080 Meat Pan   (Replaces: W10531080) Special Order $ 153.92

8 W10316452 Housing, Humidity Special Order $ 83.39

9 W10257334 Slide, Humidity Special Order $ 55.04

10 W10478548 Wine Rack Special Order $ 159.22

11 W11284443 Assembly, Shelf   (Replaces: W11180788) Special Order $ 234.76

12 WPW10408747 Holder, Filter   (Replaces: W10408747) Special Order $ 29.35

13 W10346771 Filter, Produce Preserver Appelez-nous -
14 W10257467 Rail, Track (left Side) Special Order $ 105.21

14A W10257466 Rail, Track (right Side) Special Order $ 105.21


    View Diagram in Separate Window     Print Icon   Print Part List
