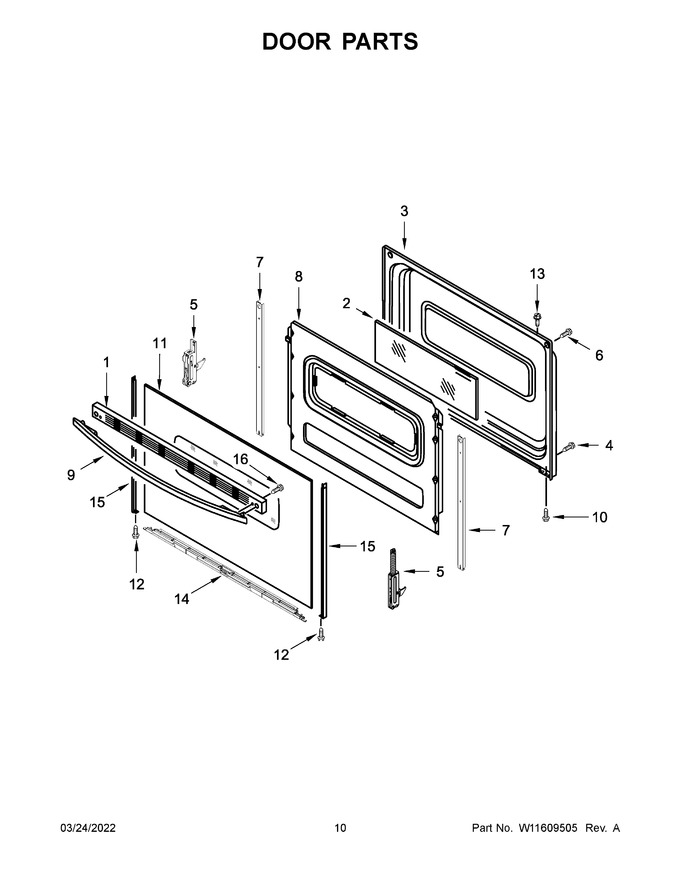

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 180.30 | ||||
| 2 | WP9758163 | Glass, Inner (Replaces: 9758163) |
|
$ 162.12 | |||||
| 3 | 9761340 | Liner, Door |
|
$ 361.12 | |||||
| 4 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 5 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 100.57 | ||||
| 6 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 7 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 8 | 9761500 | Retainer, Insulation |
|
$ 325.62 | |||||
| 9 | W10300489 | Handle, Door (white) |
|
Immediately | $ 244.88 | ||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 11 | WPW10467150 | Glass, Outer (Replaces: W10467150) |
|
$ 203.98 | |||||
| 12 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 13 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: W11444042) |
|
Immediately | $ 61.37 | ||||
| 15 | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 16 | WPW10465148 | Screw (Replaces: W10465148) |
|
Immediately | $ 8.79 | ||||
| 15A | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 5A | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 |
