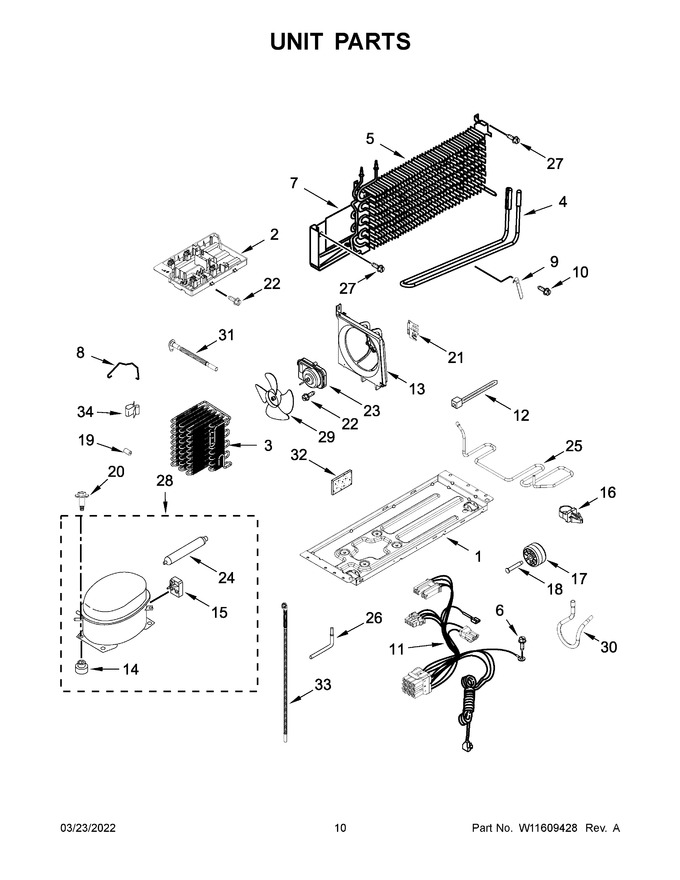

06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10624648 | Support Plate, Compressor |
|
$ 91.79 | |||||
| 2 | W10633582 | Tray, Evaporator |
|
$ 84.48 | |||||
| 3 | W11803146 | Condenser (also Order The Following Lokring Parts) (Replaces: W11290570) |
|
Immediately | $ 199.41 | ||||
| 4 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 80.79 | ||||
| 5 | W11562258 | Assembly, Evaporator (also Order The Following Lokring Parts) (Replaces: W11488141) |
|
Immediately | $ 198.32 | ||||
| 6 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 7 | W11562216 | Heat Shield (Replaces: W11377819) |
|
$ 41.90 | |||||
| 8 | W11567497 | Strap, Bale (Replaces: W11488142) |
|
$ 11.55 | |||||
| 9 | W11611126 | Heat Probe (Replaces: W11399989) |
|
$ 20.84 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 11 | W11611445 | Harness, Unit (Replaces: W11238433) |
|
Immediately | $ 73.97 | ||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 13 | W11736795 | Bracket, Fan (Replaces: W11438498) |
|
Immediately | $ 64.33 | ||||
| 14 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 7.66 | |||||
| 15 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 41.31 | ||||
| 16 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 19 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.28 | |||||
| 20 | W11417341 | Screw (Replaces: W10476309) |
|
$ 12.66 | |||||
| 21 | W11340313 | Bracket, Evaporator |
|
$ 67.82 | |||||
| 22 | W10829281 | Screw (Replaces: W10622701) |
|
$ 11.95 | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 203.92 | ||||
| 24 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 25 | W11562214 | Assembly, Evaporator Fan Wire (includes Thermal Fuse) (Replaces: W11314499) |
|
Immediately | $ 87.15 | ||||
| 26 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 27.41 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 28 | W11582579 | Compressor (also Order The Following Lokring Parts) (Replaces: W11393974) |
|
Immediately | $ 355.74 | ||||
| 29 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 91.34 | ||||
| 30 | W11562211 | Tube, Suction (Replaces: W11361071) |
|
$ 19.02 | |||||
| 31 | W11383479 | Extension, Drain Tube |
|
Immediately | $ 30.80 | ||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 33 | W10633573 | Tube, Drain |
|
Immediately | $ 31.67 | ||||
| 34 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 10.01 | |||||
| 24A | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 26.03 | ||||
| 24B | W11504449 | 4/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 33.70 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 23.30 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 24.42 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (process Tube To Compressor) |
|
Immediately | $ 23.29 | ||||
| 28D | W11506635 | Tube, Charging (1/4" W/ Schrader Valve) |
|
Immediately | $ 33.33 | ||||
| 3A | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 26.03 | ||||
| 3B | W11506623 | 5 Nk Ms 00 (suction Line To Condenser) |
|
Immediately | $ 19.80 | ||||
| 5A | W11504419 | (8/7 Nr Al 00) (suction Line To Evaporator) |
|
Immediately | $ 31.67 | ||||
| 5B | W11504449 | 4/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 33.70 | ||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- |
