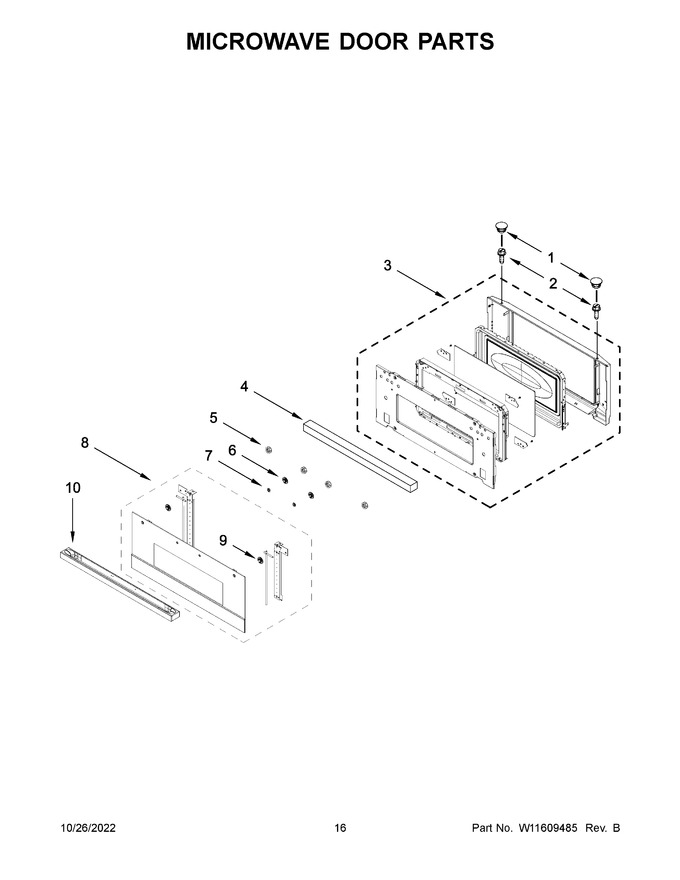

09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 11.11
2	7101P33860		Screw		Appelez-nous	-
3	W11639552		Inner Door Assembly   (Replaces: W11328749)				$ 535.73
4	W10359769		Foam, Door Handle				$ 13.28
5	W11602632		Nut   (Replaces: W11317741)		Appelez-nous	-
6	W11607071		Washer   (Replaces: W11501149)		Appelez-nous	-
7	W11132942		Spacer, Handle				$ 15.15
8	W11602619		Assembly, Outer Door (black Glass With Stainless Trim)   (Replaces: W11301024)		Appelez-nous	-
9	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
10	W11411895		Assembly, Door Handle (stainless)				$ 985.82
