01 - Cover Sheet

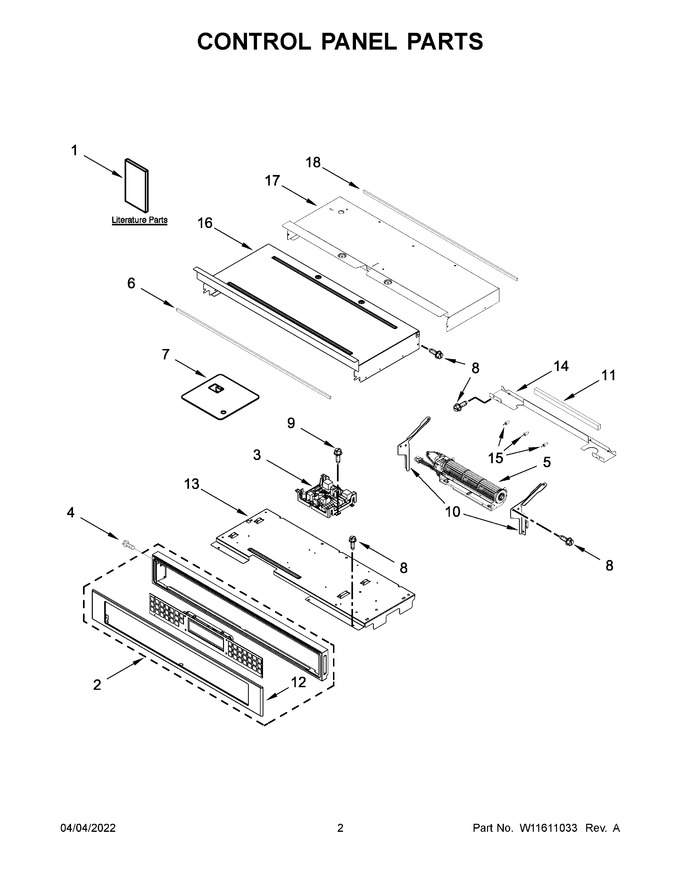

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11340821 | Owner's Manual |
|
- | |||||
| 2 | W11600644 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W11304121) |
|
$ 823.30 | |||||
| 3 | W11448962 | Appliance Manager, Copernicus (upper) (Replaces: W11249218) |
|
Immediately | $ 347.43 | ||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 13.25 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 349.43 | ||||
| 6 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 7 | W11819353 | Cover, Wifi (Replaces: W11308343) |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | 7101P43460 | Screw |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W10588746 | Skin, Control Panel (white) |
|
- | |||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 19.91 | |||||
| 16 | W11821591 | Cover, 30" Chassis Top Front (Replaces: W11244445) |
|
- | |||||
| 17 | W11223325 | Cover, 30" Chassis Top Back |
|
$ 77.19 | |||||
| 18 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12A | W10588740 | Skin, Control Panel (stainless) |
|
$ 192.65 | |||||
| 12B | W10776407 | Skin, Control Panel (black Stainless) |
|
$ 257.05 | |||||
| 1A | W11382210 | Quick Start Guide |
|
- | |||||
| 1B | W11479717 | Tech Sheet |
|
- | |||||
| 2A | W11600643 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11304099) |
|
Immediately | $ 845.18 | ||||
| 2B | W11600642 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W11304119) |
|
$ 853.35 | |||||
| 3A | W11598200 | Appliance Manager, Copernicus (without Power Supply) (lower) (Replaces: W11249217) |
|
Immediately | $ 329.29 | ||||
| NI | W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 21.12 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W11245674 | Harness, Main |
|
Immediately | $ 361.30 | ||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11788676 | Harness, Signal (Replaces: W11256625) |
|
Immediately | $ 218.10 | ||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 55.62 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 29.66 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 |
