01 - Cover Sheet

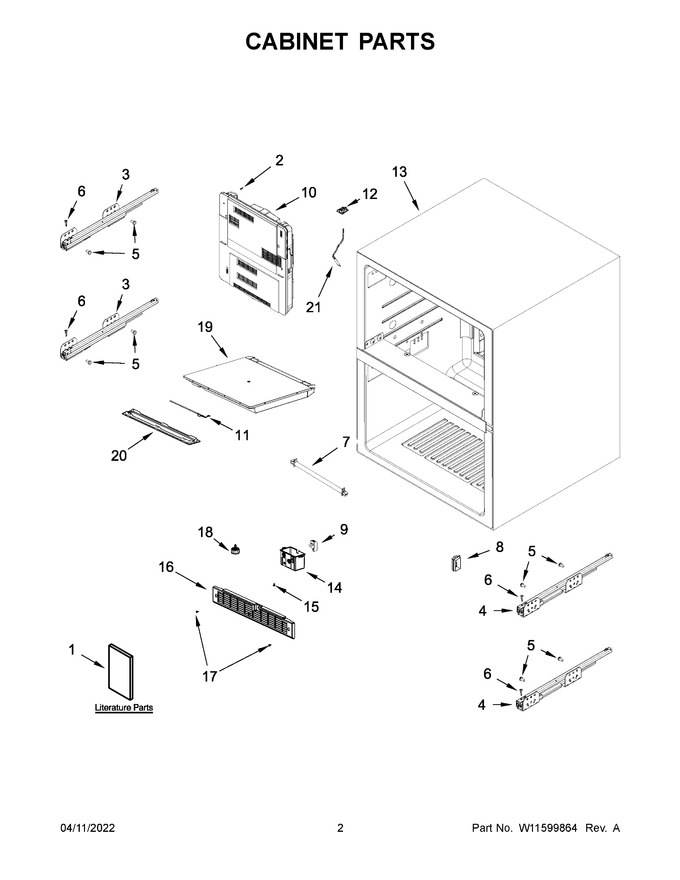

02 - Cabinet Parts
03 - Upper Drawer Parts
04 - Lower Drawer Parts
05 - Unit Parts
06 - Icemaker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11467322 | Energy Guide |
|
- | |||||
| 2 | W10774183 | Screw |
|
- | |||||
| 3 | W11599889 | Rail Assembly, Left Hand |
|
$ 200.47 | |||||
| 4 | W11599890 | Rail Assembly, Right Hand |
|
$ 201.48 | |||||
| 5 | W10621524 | Screw |
|
$ 16.10 | |||||
| 6 | W10204809 | Screw |
|
- | |||||
| 7 | W11580231 | Defrost Holder And Heater |
|
- | |||||
| 8 | W11568783 | Switch, Case |
|
$ 20.66 | |||||
| 9 | W11266082 | Switch, Door (Replaces: W11265587) |
|
Immediately | $ 36.73 | ||||
| 10 | W11580229 | Cover Assembly, Evaporator |
|
$ 397.40 | |||||
| 11 | W11263841 | Led Assembly (Replaces: W11312453) |
|
$ 142.35 | |||||
| 12 | W11580230 | Connector, Cover |
|
- | |||||
| 13 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 14 | W11568794 | Assembly, Switch Box |
|
$ 173.50 | |||||
| 15 | W11371097 | Screw |
|
- | |||||
| 16 | W11580233 | Kick Plate |
|
$ 74.89 | |||||
| 17 | W11675284 | Screw (Replaces: W11371095) |
|
$ 14.35 | |||||
| 18 | W11106296 | Leg, Leveling (Replaces: 4344763) |
|
$ 17.13 | |||||
| 19 | W11580290 | Assembly, Separator |
|
- | |||||
| 20 | W11312450 | Cover, Led |
|
- | |||||
| 21 | W11359415 | Fuse, Temperature |
|
$ 98.35 | |||||
| 1A | W10772894 | Tech Sheet |
|
- | |||||
| 1B | W11357308 | Use And Care Guide |
|
- |
