01 - Cover Sheet

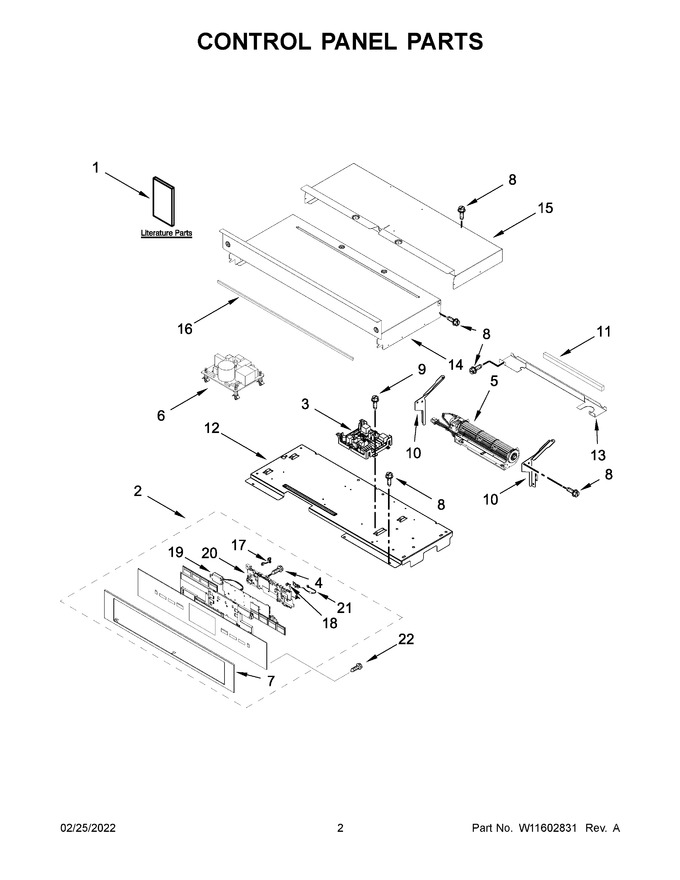

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11340513 | Owner's Manual |
|
- | |||||
| 2 | W11598138 | Assembly, Control Panel (stainless) (Replaces: W11301918) |
|
$ 1,596.25 | |||||
| 3 | W11448961 | Appliance Manager, Copernicus (Replaces: W11250487) |
|
Immediately | $ 342.92 | ||||
| 4 | W10489172 | Screw |
|
$ 10.78 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 349.43 | ||||
| 6 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 285.62 | ||||
| 7 | W11197498 | Skin, Control Panel (stainless) |
|
Immediately | $ 337.36 | ||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | 7101P43460 | Screw |
|
- | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | W11179509 | Tray, Electronic |
|
- | |||||
| 13 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 14 | W11168600 | Cover, Chassis Top Front (30") |
|
$ 147.00 | |||||
| 15 | W11223325 | Cover, Chassis Top Back (30") |
|
$ 77.19 | |||||
| 16 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 17 | W10566973 | Harness, Keypad (left To Center) |
|
$ 73.97 | |||||
| 18 | W10524350 | Harness, Keypad (right To Center) |
|
$ 70.39 | |||||
| 19 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 72.84 | |||||
| 20 | W10668510 | Housing |
|
$ 94.65 | |||||
| 21 | W10575307 | Jumper Harness, Power Supply |
|
Immediately | $ 156.46 | ||||
| 22 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 13.25 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11423731 | Quick Start Guide |
|
- | |||||
| 1B | W11405740 | Tech Sheet |
|
- | |||||
| NI | W11537624 | Antenna (Replaces: W11409842) |
|
$ 95.45 | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11249914 | Harness, Signal |
|
- | |||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 55.62 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 29.66 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 | |||||
| NI | W11408879 | Harness, Main |
|
$ 236.54 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 19.01 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 21.12 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 |
