01 - Cover Sheet
02 - Cabinet Parts
03 - Upper Drawer Parts
04 - Lower Drawer Parts
05 - Unit Parts
06 - Icemaker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

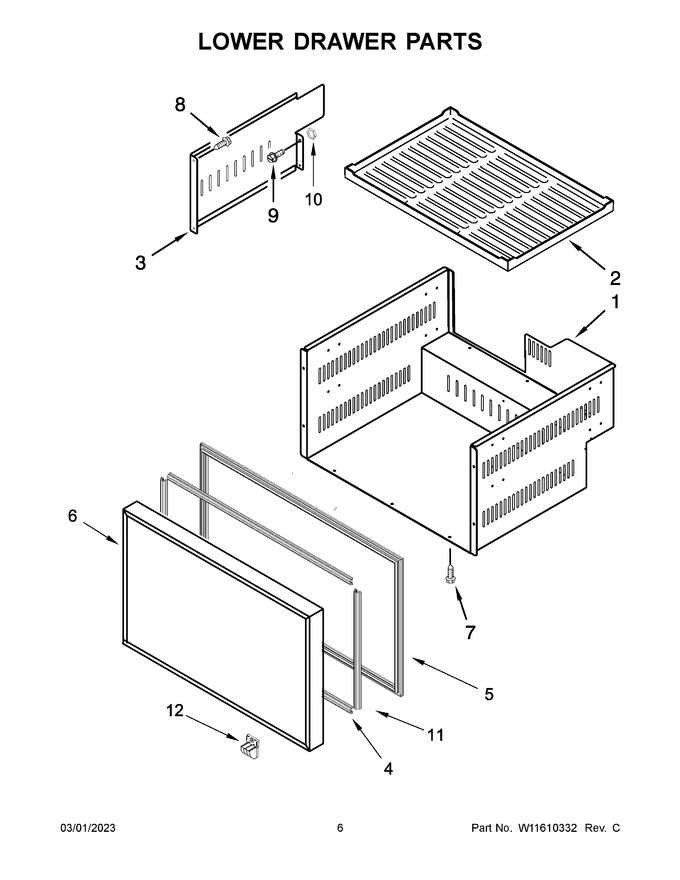

| 1 | W11599895 | Drawer Box Assembly, Lower |
|
- | |||||
| 2 | W11568945 | Mat, Lower Drawer |
|
- | |||||
| 3 | W11599888 | Drawer Partition |
|
$ 169.35 | |||||
| 4 | W11774798 | Gasket, Sash (top/bottom) (Replaces: W11360665) |
|
Immediately | $ 105.57 | ||||
| 5 | W11568947 | Gasket |
|
$ 106.53 | |||||
| 6 | W11802491 | Door Assembly, Lower (Replaces: W11580280) |
|
$ 630.64 | |||||
| 7 | W10319183 | Screw |
|
- | |||||
| 8 | W10204809 | Screw |
|
- | |||||
| 9 | W10204810 | Screw |
|
- | |||||
| 10 | W10204920 | Nut |
|
- | |||||
| 11 | W11579578 | Door Gasket, Short (Replaces: W11568838) |
|
- | |||||
| 12 | W11678576 | Plate, Push (Replaces: W11568796) |
|
Immediately | $ 33.22 | ||||
| NI | W11599969 | Assembly, Complete Door |
|
- | |||||
| NI | NP | Cabinet (not A Serviceable Part) |
|
- |
