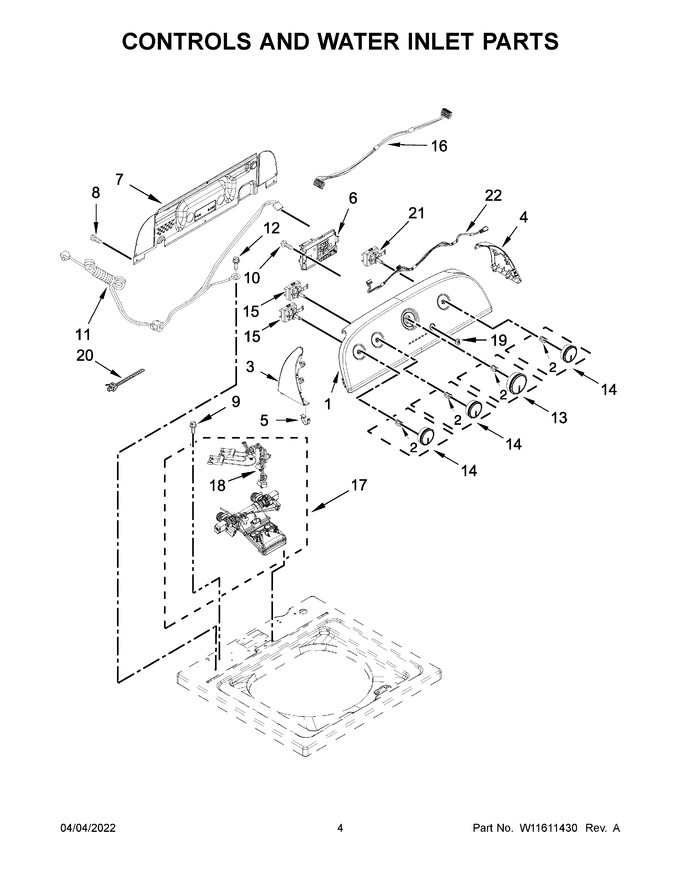

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11099231		Panel, Console   (Replaces: W10774525)		Appelez-nous	-
2	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
3	W10806901		End Cap (left) (white)		Appelez-nous	-
4	W10806902		End Cap (right) (white)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W11608068		Cntrl-elec   (Replaces: W11578972)		Appelez-nous	-
7	W10552335		Panel, Console Rear Cover				$ 308.85
8	W11685943		Screw   (Replaces: W10660565)				$ 13.47
9	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	W11027062		Cord, Universal Power		Appelez-nous	-
12	3400073		Screw Ground Screw - Power Cord		Appelez-nous	-
13	W11501455		Knob, Timer (white/metallic)   (Replaces: W10576634)				$ 41.20
14	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
15	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
16	W10694682		Harness, Upper		Appelez-nous	-
17	W11038628		Inlet Assembly, Water   (Replaces: W10869802)				$ 220.41
18	W10868094		Harness, Valve				$ 167.50
19	WPW10596298		Button, Push To Start   (Replaces: W10596298)				$ 65.68
20	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
21	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
22	W10786100		Harness, Jumper				$ 170.98
12A	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
NI	WPW10475423		10a Cord Adapter (type B)   (Replaces: W10475423)				$ 19.58
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11752087		Cord Adapter, European   (Replaces: W10476821)				$ 53.38
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 72.81
NI	W10446855		10a Cord Lock		Appelez-nous	-
