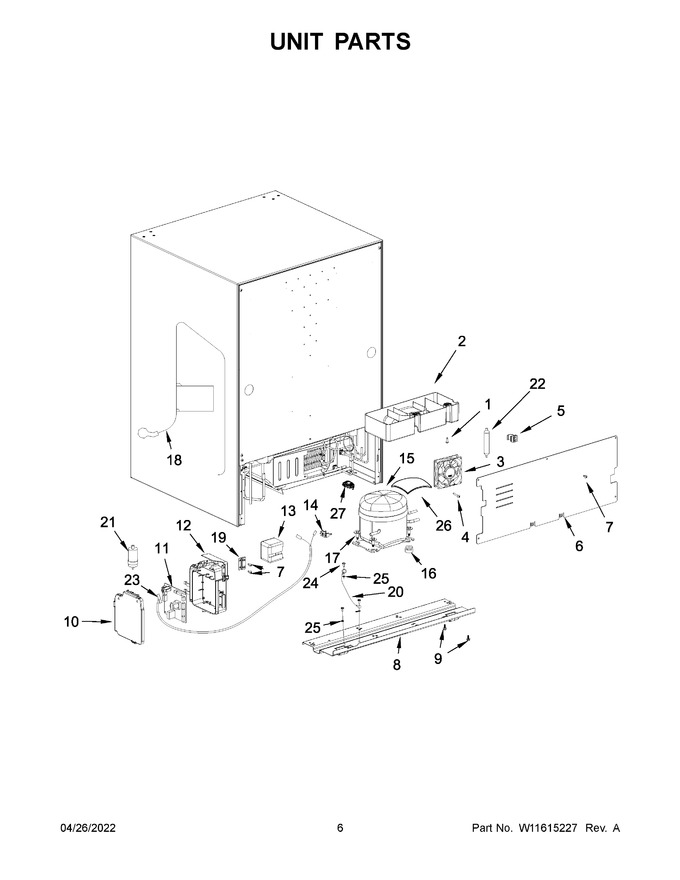

04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11375763		Screw		Appelez-nous	-
2	W11538057		Pan, Water				$ 104.69
3	W11266081		Fan Motor   (Replaces: W11313136)				$ 194.89
4	W11266081		Assembly, Fan Motor   (Replaces: W11265584)				$ 194.89
5	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
6	W11264703		Cover, Rear		Appelez-nous	-
7	W11371097		Screw		Appelez-nous	-
8	W11614599		Plate, Base		Appelez-nous	-
9	W11371100		Screw		Appelez-nous	-
10	W11313206		Cover, Pcb				$ 73.67
11	W11629251		Control, Electronic   (Replaces: W11614616)				$ 382.99
12	W11313209		Pcb Box		Appelez-nous	-
13	W11579581		Cover   (Replaces: W11568820)		Appelez-nous	-
14	WP2262181		Ptc Relay   (Replaces: W11614619)				$ 115.90
15	W11817962		Compressor   (Replaces: W11538055)				$ 584.34
16	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 7.62
17	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
18	W11618463		Cord, Power   (Replaces: W11498145)			Immediately	$ 119.22
19	W11579515		Clamp, Cord   (Replaces: W11576947)		Appelez-nous	-
20	W11265588		Wire   (Replaces: W11614621)		Appelez-nous	-
21	W11538053		Capacitor				$ 88.51
22	W11109499		Drier (service Drier Without Dye) (also Order The Following Lokring Parts)   (Replaces: W10805035)			Immediately	$ 35.21
23	W11263876		Harness, Wire		Appelez-nous	-
24	4344797		Screw		Appelez-nous	-
25	W10322070		Washer		Appelez-nous	-
26	W11596025		Compressor, Rubber   (Replaces: W11360595)				$ 34.44
27	W11683120		Protector, Motor   (Replaces: W11614617)		Appelez-nous	-
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
