View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts

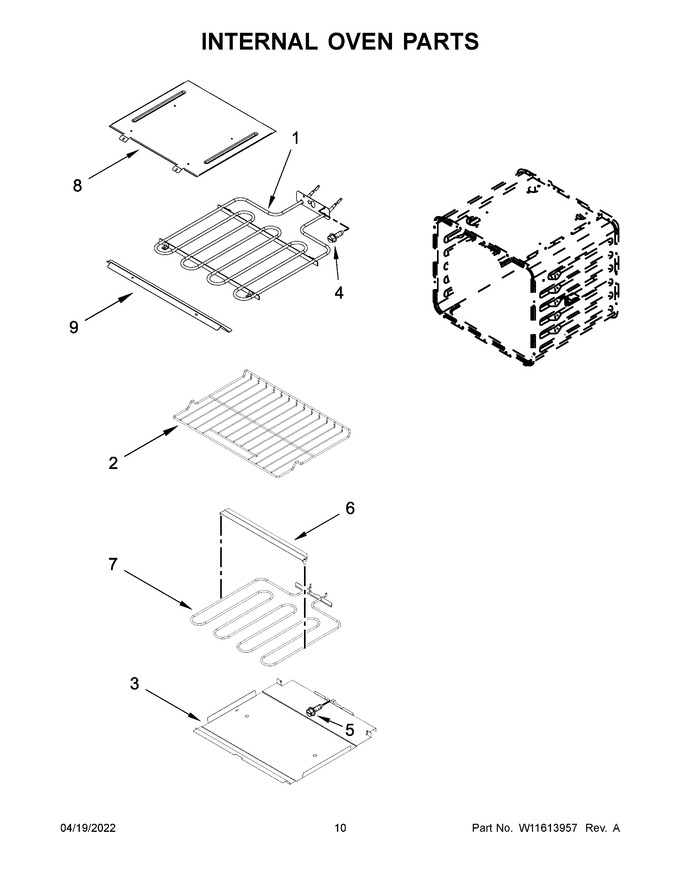

03 - Oven Parts
04 - Lower Oven Door Parts
05 - Upper Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598122 | Element, Broil (Replaces: W11238159) |
|
$ 117.62 | |||||
| 2 | WPW10554526 | Rack, Oven (Replaces: W10554526) |
|
Immediately | $ 164.66 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 176.25 | |||||
| 4 | 7101P43460 | Screw |
|
- | |||||
| 5 | 7101P42660 | Screw |
|
- | |||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 42.72 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W11292248) |
|
Immediately | $ 131.81 | ||||
| 8 | W11598121 | Reflector, Broil (Replaces: W11235537) |
|
$ 55.97 | |||||
| 9 | W10588737 | Shield, Broil Front |
|
$ 94.86 |
