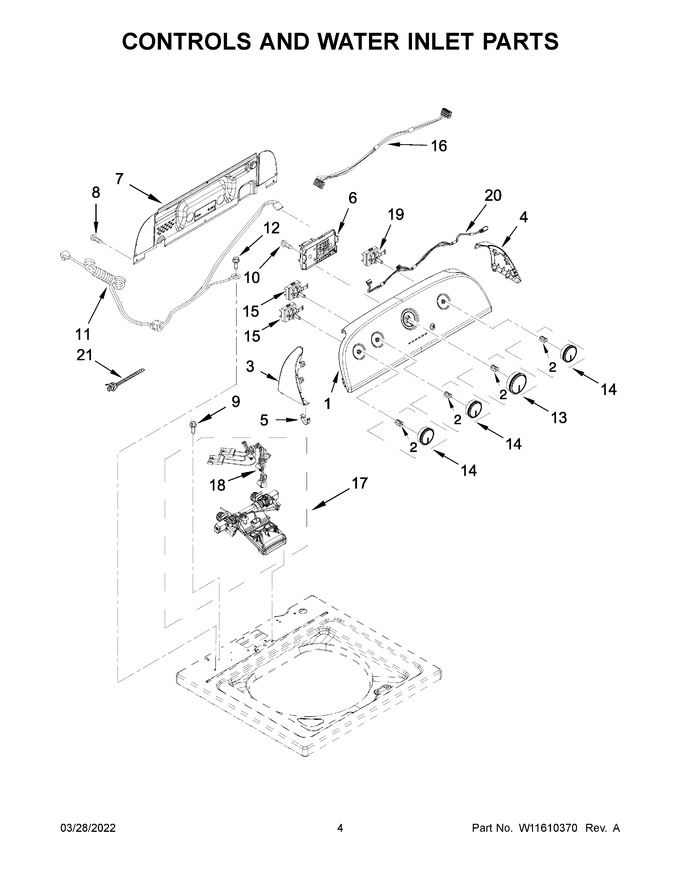

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11099231 | Panel, Console (Replaces: W10774525) |
|
- | |||||
| 2 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 3 | WPW10520782 | End Cap (left) (white) (Replaces: W10520782) |
|
$ 58.22 | |||||
| 4 | WPW10520780 | End Cap (right) (white) (Replaces: W10520780) |
|
$ 57.91 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W11607631 | Control Unit Assembly, Machine And Motor (Replaces: W11577216) |
|
$ 329.13 | |||||
| 7 | W10552335 | Panel, Console Rear Cover |
|
$ 308.85 | |||||
| 8 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 9 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 6.80 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | W10877409 | Cord, Power (Replaces: W10737739) |
|
$ 117.00 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W11501455 | Knob, Timer (white/metallic) (Replaces: W10576634) |
|
$ 41.20 | |||||
| 14 | W10576636 | Assembly, Control Knob (white/metallic) |
|
- | |||||
| 15 | WPW10285512 | Switch, Rotary Encoder (4 Position) (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 16 | W10694682 | Harness, Upper |
|
- | |||||
| 17 | W11614511 | Inlet Assembly, Water (Replaces: W11361463) |
|
- | |||||
| 18 | W10701401 | Harness, Valve |
|
$ 160.32 | |||||
| 19 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 163.89 | ||||
| 20 | W10786100 | Harness, Jumper |
|
$ 170.98 | |||||
| 21 | W10339680 | Cable Tie |
|
- |
