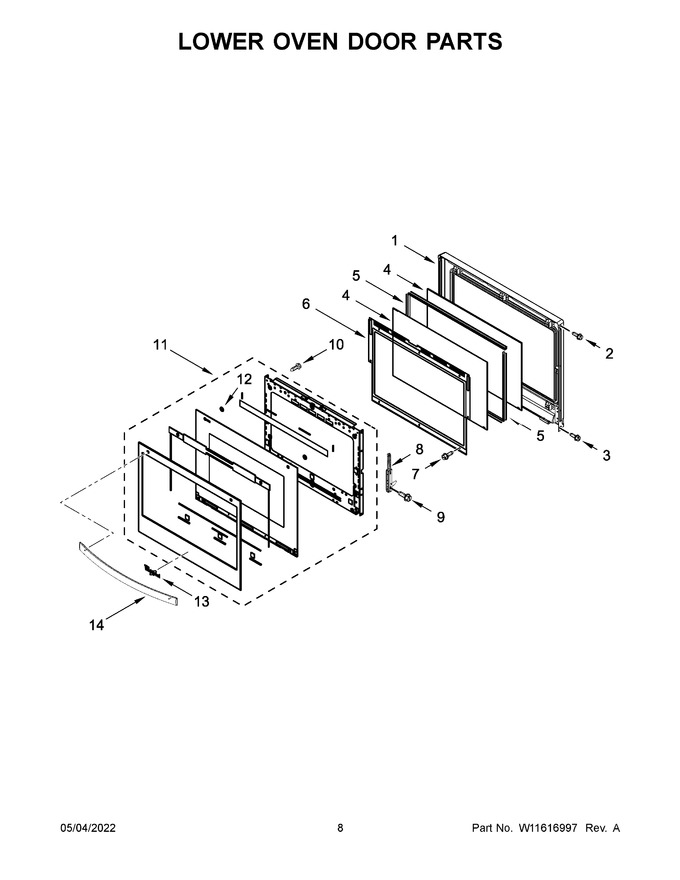

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11768649		Liner Assembly   (Replaces: W11302587)			Immediately	$ 273.43
2	7101P37560		Screw		Appelez-nous	-
3	W11617225		Screw   (Replaces: W11290045)				$ 13.29
4	WPW10618107		Glass, Inner   (Replaces: W10618107)			Immediately	$ 222.94
5	W11736671		Spacer, Air Divider   (Replaces: W11302730)			Immediately	$ 64.88
6	W11598182		Retainer, Air Divider Glass   (Replaces: W11174095)			Immediately	$ 73.38
7	7101P42660		Screw		Appelez-nous	-
8	W11744485		Hinge, Door (left)   (Replaces: W11296077)				$ 139.71
9	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 7.36
10	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 13.28
11	W11600322		Door Assembly (stainless)   (Replaces: W11296059)			Immediately	$ 778.17
12	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
13	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
14	W11110499		Handle, Door (stainless)   (Replaces: W10875206)			Immediately	$ 169.38
11A	W11600348		Door Assembly (black Stainless)   (Replaces: W11286336)		Appelez-nous	-
14A	W11110500		Handle Assembly (black Stainless)   (Replaces: W10903342)				$ 175.97
8A	W11296078		Hinge, Door (right)				$ 77.90
