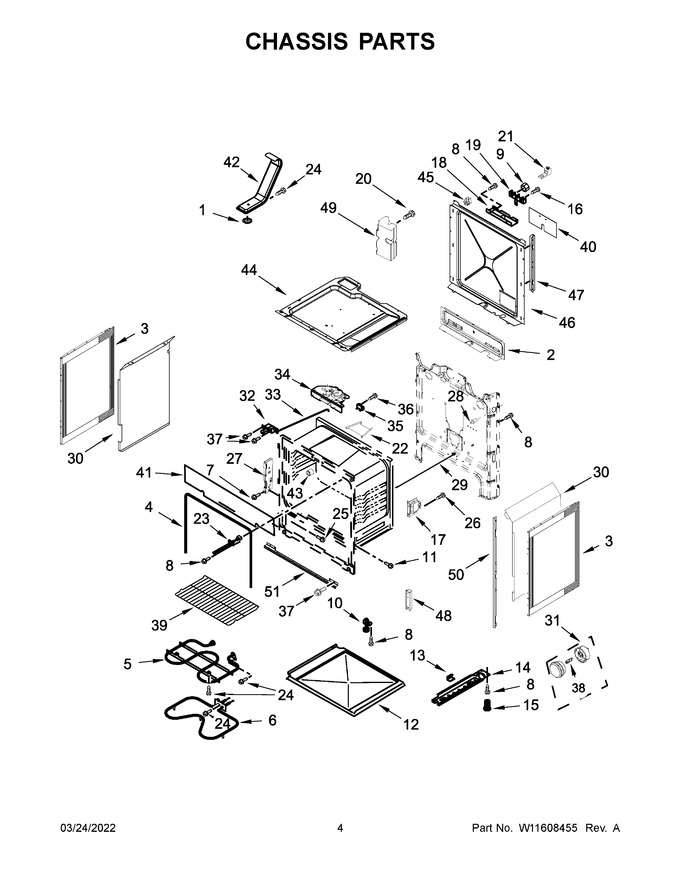

Chassis Parts


Cooktop Parts


Door Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11268772		Screen, Vent   (Replaces: W11092984)			Immediately	$ 196.70
2	W10162248		Cover, Wire				$ 133.37
3	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 160.65
4	W11542153		Seal, Door   (Replaces: W11491751)			Immediately	$ 47.45
5	WPW10583047		Element, Broil   (Replaces: W10583047)			Immediately	$ 143.20
6	W11447783		Bake, Element   (Replaces: W10535148)			Immediately	$ 85.40
7	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
9	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 7.37
10	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 29.33
11	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
12	W10312471		Tray, Insulation				$ 64.87
13	W10137382		Clip, Panel			Immediately	$ 43.58
14	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 56.39
15	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.42
16	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
17	W10404688		Bracket, Oven Support   (Replaces: W10355173)				$ 15.92
18	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
19	WPW10245259		Block, Terminal   (Replaces: W10245259)			Immediately	$ 31.65
20	W11135756		Screw   (Replaces: W11034869)				$ 13.26
21	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 7.98
22	W10853401		Baffle, Upper Chassis		Appelez-nous	-
23	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 150.90
24	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
25	W11684512		Screw   (Replaces: 3400080)				$ 13.33
26	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
27	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.43
28	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 146.71
29	9757239		Rod, Door Switch				$ 86.73
30	W11379943		Retainer, Insulation (right)		Appelez-nous	-
31	W11594170		Light Assembly   (Replaces: W11544377)			Immediately	$ 35.88
32	WP9761013		Front Door Latch Assembly   (Replaces: 9761013)				$ 230.72
33	W10078370		Rod, Push Latch				$ 85.72
34	WPW10107820		Rear Door Latch Assembly   (Replaces: W10107820)				$ 278.60
35	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 45.09
36	3196172		Screw			Immediately	$ 12.12
37	W11169708		Screw   (Replaces: 3196560)				$ 13.36
38	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 26.18
39	W11520287		Rack, Oven   (Replaces: W11173792)			Immediately	$ 54.79
40	W10655441		Shield, Power Cord				$ 129.92
41	W11688573		Chassis, Upper Insulation   (Replaces: W10848443)				$ 30.64
42	W11122085		Assembly, Flue				$ 106.54
43	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 50.45
44	W10814301		Chassis, Support Upper		Appelez-nous	-
45	W11769891		Clip-panel, Ratcheting   (Replaces: W10866583)				$ 9.57
46	W11379354		Cover, Back			Immediately	$ 70.01
47	W10162241		Channel, Rear				$ 33.80
48	W11312197		Bracket, Reinforcing   (Replaces: W11181076)		Appelez-nous	-
49	W11217187		Counterweight   (Replaces: W10914589)				$ 30.56
50	W11510561		Barrier Rail, Rubber (front Left)				$ 67.38
51	W11464547		Bracket, Front Frame				$ 41.30
14A	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 56.39
30A	W11379353		Retainer, Insulation (left)		Appelez-nous	-
50A	W11510562		Barrier Rail, Rubber (front Right)				$ 67.38
NI	NP		Rail, Center (not Serviced)		Appelez-nous	-
NI	W11684775		Insulation, Wrap   (Replaces: W10830993)		Appelez-nous	-
NI	W11688416		Insulation, Back   (Replaces: W10815385)		Appelez-nous	-
