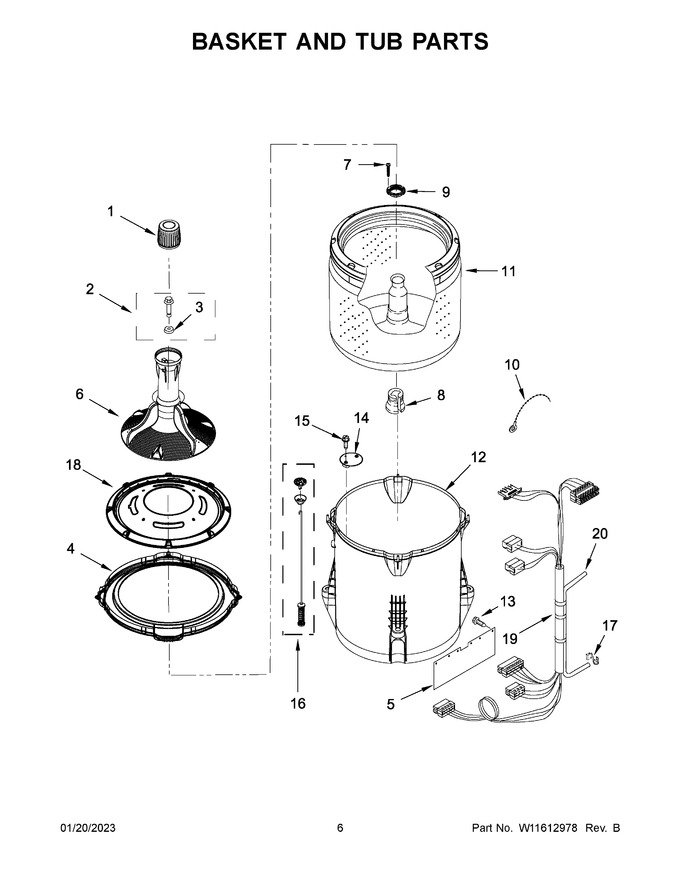

01 - Cover Sheet


02 - Top And Cabinet Parts


03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10863011		Dispenser, Fabric Softener				$ 67.63
2	W10772621		Screw And Washer   (Replaces: W10003790)			Immediately	$ 4.77
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 9.98
4	WPW10531289		Ring, Tub   (Replaces: W10531289)			Immediately	$ 182.35
5	W10339098		Shield, Splash				$ 23.27
6	W11447102		Agitator   (Replaces: W10680206)		Appelez-nous	-
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 6.80
8	WP389140		Block, Basket Drive   (Replaces: 389140)			Immediately	$ 24.74
9	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 10.40
10	W10339680		Cable Tie		Appelez-nous	-
11	W10554251		Basket Assembly			Immediately	$ 388.99
12	W10371566		Tub   (Replaces: W10238320)				$ 320.71
13	W10429200		Retainer, Push-in		Appelez-nous	-
14	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 58.73
15	WP8533928		Screw   (Replaces: 8533928)			Immediately	$ 7.43
16	W10780045		Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10821951)			Immediately	$ 102.83
17	W11755726		Clip, Harness   (Replaces: W11284522)			Immediately	$ 6.95
18	W11085570		Base Shield   (Replaces: W10723583)				$ 36.51
19	W11388374		Harness, Lower		Appelez-nous	-
20	WP353244		Hose Pressure Switch   (Replaces: 8572540)			Immediately	$ 78.00
