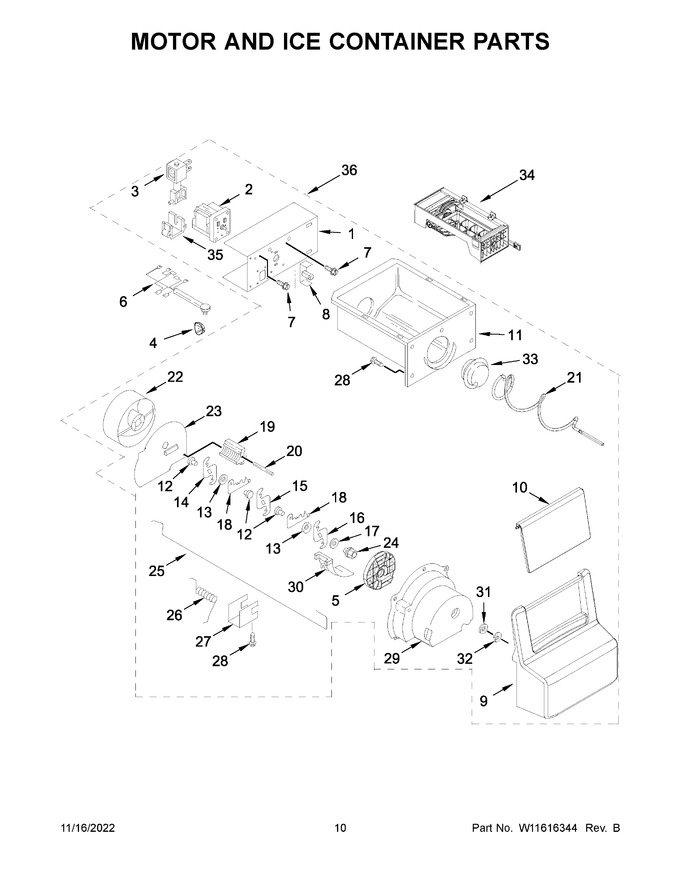

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11307588 | Bracket, Motor |
|
$ 85.61 | |||||
| 2 | W11671282 | Motor, Dispenser (Replaces: W10884561) |
|
Immediately | $ 158.53 | ||||
| 3 | WP2152713 | Assembly, Solenoid (Replaces: 2152713) |
|
$ 225.10 | |||||
| 4 | W11602886 | Light Module, Led (Replaces: W11549780) |
|
$ 38.37 | |||||
| 5 | W10138206 | Spacer - Crusher Housing |
|
- | |||||
| 6 | W11676779 | Assembly, Ice Dispenser Wiring (Replaces: W11218402) |
|
$ 65.90 | |||||
| 7 | WP489399 | Screw (Replaces: W10162487) |
|
$ 6.57 | |||||
| 8 | WPW10169511 | Coupling, Motor (Replaces: W10169511) |
|
$ 22.06 | |||||
| 9 | W10189274 | Cover, Ice Container Front |
|
$ 140.05 | |||||
| 10 | W11690902 | Door, Ice (Replaces: W11351745) |
|
$ 20.78 | |||||
| 11 | W10850492 | Container, Ice (Replaces: W10670844) |
|
Immediately | $ 305.82 | ||||
| 12 | W11032812 | Spacer, Step |
|
- | |||||
| 13 | W11032808 | Spacer, Flat |
|
$ 9.57 | |||||
| 14 | W10278731 | Blade, Rotary A |
|
$ 81.78 | |||||
| 15 | W10278732 | Blade, Rotary B |
|
$ 81.90 | |||||
| 16 | W10278733 | Blade, Rotary C |
|
$ 81.90 | |||||
| 17 | 489234 | Washer, Plain Upper Cam |
|
$ 12.64 | |||||
| 18 | W10181990 | Blade, Fixed |
|
- | |||||
| 19 | W10138203 | Block, Blade (Replaces: W10189708) |
|
- | |||||
| 20 | 489229 | Pin, Roll |
|
$ 43.62 | |||||
| 21 | WPW10295082 | Auger (Replaces: W10295082) |
|
$ 154.45 | |||||
| 22 | 4388736 | Drum (Replaces: W10698642) |
|
$ 87.27 | |||||
| 23 | W10852691 | Baffle, Floating (Replaces: W10403781) |
|
Immediately | $ 31.37 | ||||
| 24 | WP1119018 | Nut, Bearing (Replaces: 1119018) |
|
$ 7.11 | |||||
| 25 | W11596045 | Arm, Control (Replaces: W10838981) |
|
$ 31.96 | |||||
| 26 | 1119020 | Spring, Return |
|
$ 17.22 | |||||
| 27 | 1119021 | Clip, Retainer (dispenser Rod) |
|
$ 9.86 | |||||
| 28 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.13 | |||||
| 29 | WPW10185018 | Housing, Crusher (Replaces: W10185018) |
|
$ 117.59 | |||||
| 30 | WP1119017 | Deflecter, Ice (Replaces: 1119017) |
|
$ 7.16 | |||||
| 31 | 489234 | Washer, Plain Upper Cam |
|
$ 12.64 | |||||
| 32 | WP489236 | Ring, Retainer (Replaces: 489236) |
|
Immediately | $ 11.50 | ||||
| 33 | W10749708 | Coupling, Ice Conveyor (Replaces: W10698668) |
|
$ 24.70 | |||||
| 34 | W11700250 | Complete Icemaker Assembly (Replaces: W11359448) |
|
Immediately | $ 373.69 | ||||
| 35 | W10850503 | Guide, Solenoid (Replaces: 2149100) |
|
$ 9.78 | |||||
| 36 | WPW10558424 | Ice Container, Complete (Replaces: W10558424) |
|
Immediately | $ 297.14 |
