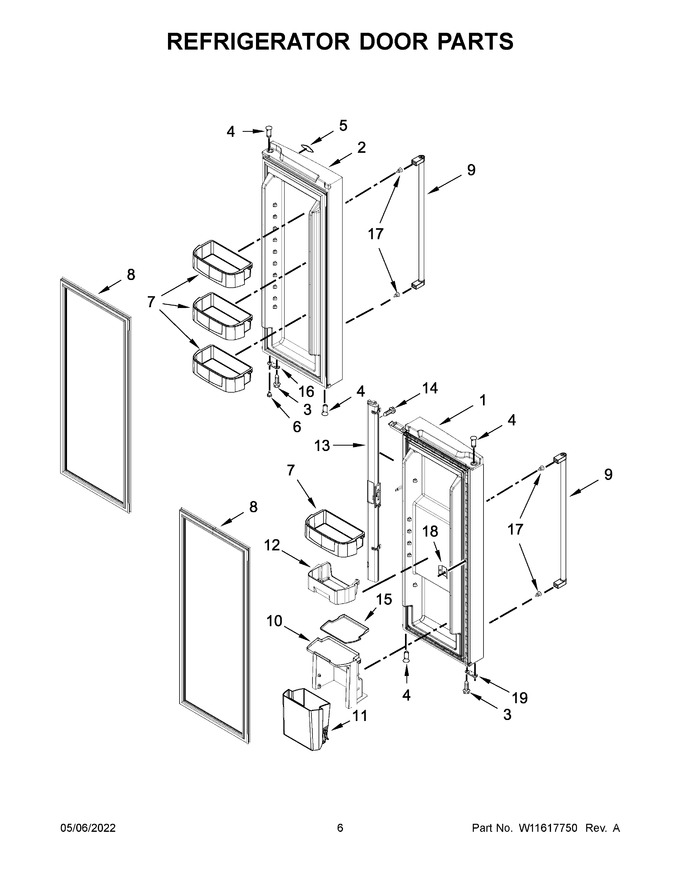

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10865734		Door, Left (includes #8) (black Stainless)   (Replaces: W10865734)				$ 1,127.16
2	LW10865738		Door, Right (includes #8) (black Stainless)   (Replaces: W10865738)			Immediately	$ 1,125.33
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
4	W11544568		Thimble   (Replaces: W10366270)			Immediately	$ 13.95
5	W10876598		Grey   (Replaces: W10765861)			Immediately	$ 72.82
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 7.55
7	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 77.70
8	W10460610		Gasket, Door (black)   (Replaces: W10413465)				$ 279.53
9	W11483532		Assembly, Handle (stainless)   (Replaces: W11339138)			Immediately	$ 178.01
10	WPW10317224		Compartment, Utility   (Replaces: W10317224)				$ 103.80
11	WPW10411219		Bin, Fresh & Ready   (Replaces: W10411219)			Immediately	$ 95.94
12	WPW10326335		Bin, Shallow   (Replaces: W10326335)			Immediately	$ 64.79
13	W11692845		Assembly, Flipper Mullion (black)   (Replaces: W10624448)				$ 241.66
14	W10854958		Screw   (Replaces: 12990302)				$ 7.90
15	WPW10317192		Bin, Door Mat   (Replaces: W10317192)				$ 87.32
16	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 36.94
17	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
18	WP939101		Screw Anchor   (Replaces: 939101)				$ 7.88
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
4A	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 12.71
