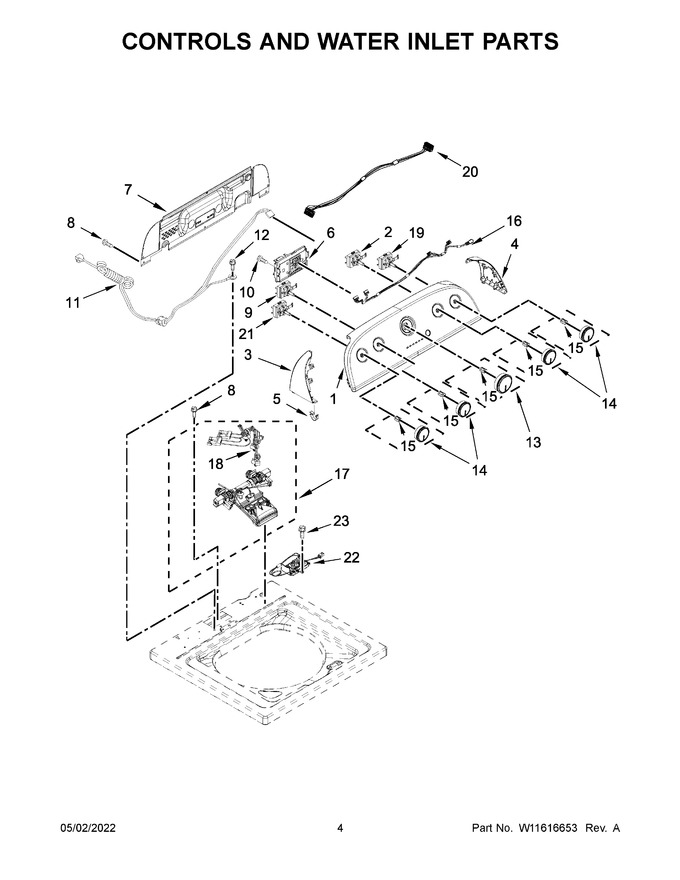

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11491466		Panel, Console   (Replaces: W11313056)		Appelez-nous	-
2	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
3	W10806902		End Cap (left) (white)		Appelez-nous	-
4	W10806901		End Cap (right) (white)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W11611306		Control Unit Assembly, Machine And Motor   (Replaces: W11577997)			Immediately	$ 329.13
7	W11350700		Panel, Console Rear Cover		Appelez-nous	-
8	W11685943		Screw   (Replaces: W10660565)				$ 13.47
9	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 142.31
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.43
11	W11621179		Cord, Power   (Replaces: W11489160)		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W11501455		Knob, Timer (white/metallic)   (Replaces: W10576634)				$ 41.20
14	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
15	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
16	W11211519		Harness, Upper   (Replaces: W10694680)				$ 166.32
17	W11038689		Inlet Assembly, Water   (Replaces: W10869800)			Immediately	$ 127.65
18	W10868094		Harness, Valve				$ 167.50
19	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
20	W10786100		Harness, Jumper				$ 170.98
21	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 122.27
22	W11491462		Assembly, Line Filter   (Replaces: W11336804)		Appelez-nous	-
23	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
