SELECT A DIAGRAM

01 - Cover Sheet

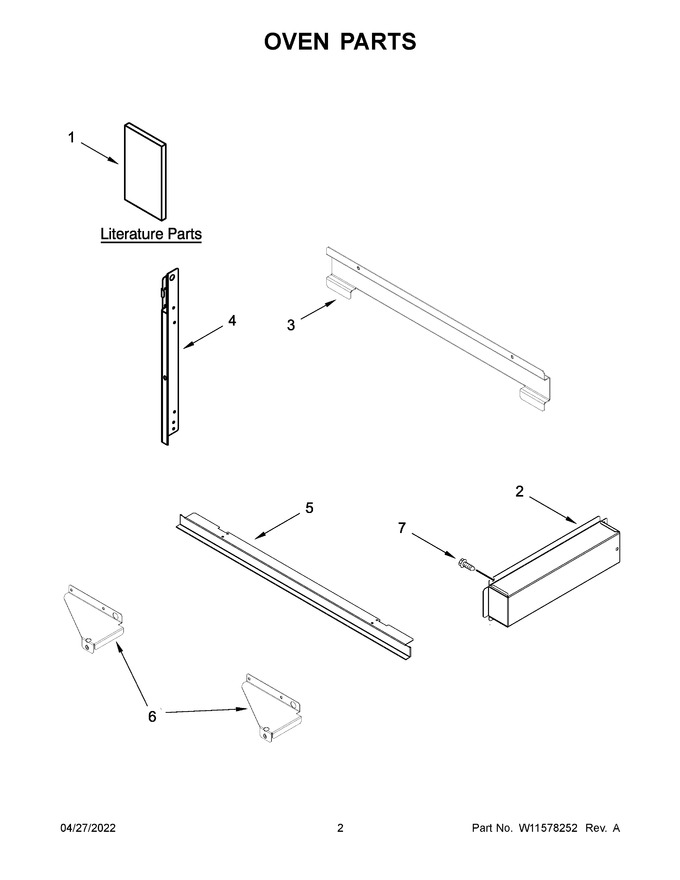

02 - Oven Parts


03 - Control Panel Parts


04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11559937		Installation Instructions		Appelez-nous	-
2	W10239155		Box, Conduit				$ 92.88
3	W11673269		Support, Microwave Module   (Replaces: W10420960)			Immediately	$ 62.93
4	W11460675		Rail, Side (left)		Appelez-nous	-
5	W11359268		Trim, Bottom (stainless)				$ 114.07
6	W10239156		Bracket, Lower (left)				$ 19.12
7	7101P42660		Screw		Appelez-nous	-
1A	W11235346		Guide, Use And Care (microwave Oven)		Appelez-nous	-
1B	W11284428		Sheet, Tech		Appelez-nous	-
1C	W11235305		Diagram, Wiring		Appelez-nous	-
4A	W11460672		Rail, Side (right)		Appelez-nous	-
6A	W10239157		Bracket, Lower (right)				$ 18.66
NI	W11226264		Strap, Ground		Appelez-nous	-
NI	4450800		Screw, Grounding				$ 12.12
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 70.99
NI	NP		Rail, Center (not Serviced)		Appelez-nous	-
NI	W11356992		Conduit				$ 200.96
NI	W11356986		Harness, Communication			Immediately	$ 101.57
NI	W11356977		Harness, Cable Tree Assembly				$ 76.56
NI	W11539494		Harness, Inverter				$ 39.05
NI	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 27.22
NI	W11578578		Harness, Interlock   (Replaces: W11555168)			Immediately	$ 115.01
NI	W10760039		Bag, Hardware   (Replaces: W10513362)				$ 10.95

    View Diagram in Separate Window       Print Part List
