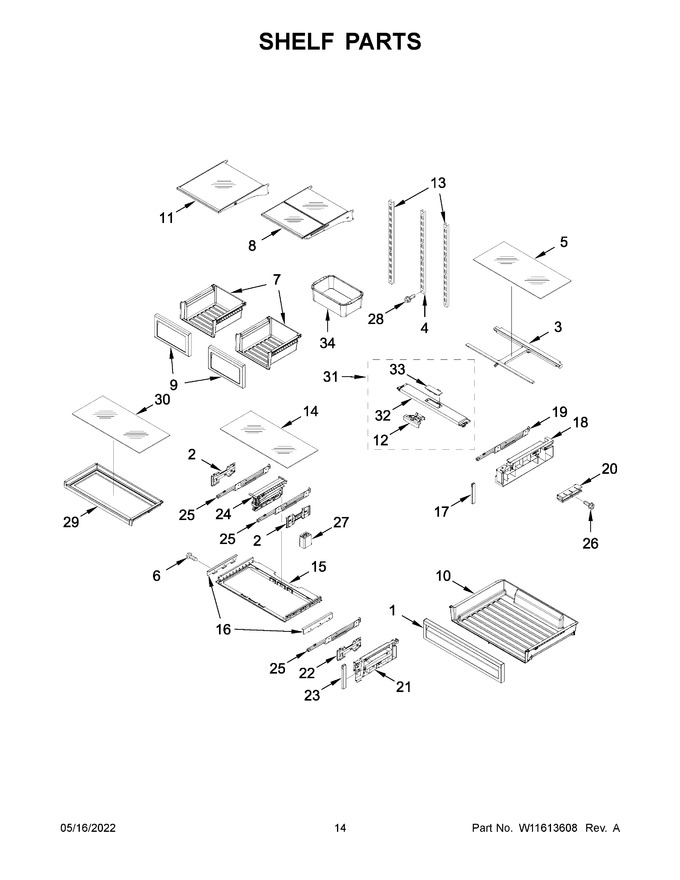

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11034025 | Front, Pantry (Replaces: W10789433) |
|
Immediately | $ 254.34 | ||||
| 2 | W10530317 | Plate, Slide Center |
|
$ 13.75 | |||||
| 3 | W11224265 | Support, Pantry (Replaces: W11124673) |
|
$ 142.71 | |||||
| 4 | WPW10248516 | Ladder, Center (Replaces: W10248516) |
|
$ 32.30 | |||||
| 5 | W11092486 | Glass, Pantry (Replaces: W10893769) |
|
$ 226.74 | |||||
| 6 | W10847999 | Screw |
|
$ 12.12 | |||||
| 7 | W10919809 | Pan, Crisper (Replaces: W10624433) |
|
$ 142.99 | |||||
| 8 | WPW10737427 | Shelf, Tuck (Replaces: W10737427) |
|
$ 255.20 | |||||
| 9 | W11094883 | Front, Crisper (Replaces: W10789490) |
|
Immediately | $ 236.68 | ||||
| 10 | WPW10654844 | Pan, Pantry (Replaces: W10654844) |
|
Immediately | $ 135.50 | ||||
| 11 | WPW10756310 | Shelf, Fixed (Replaces: W10756310) |
|
$ 239.95 | |||||
| 12 | W10512596 | Knob, Pantry Temperature Control |
|
- | |||||
| 13 | W11690684 | Ladder, Side (Replaces: W10372170) |
|
$ 45.56 | |||||
| 14 | W11228031 | Glass, Crisper (Replaces: W10893773) |
|
$ 220.05 | |||||
| 15 | W11133643 | Cover, Crisper |
|
$ 180.26 | |||||
| 16 | W11133647 | Rail, Side (left Hand) |
|
$ 125.60 | |||||
| 17 | W10467416 | Plate, Pantry Front |
|
$ 34.43 | |||||
| 18 | WPW10498906 | Sideplate, Pantry (left Hand) (Replaces: W10498906) |
|
$ 118.84 | |||||
| 19 | W10499289 | Slide, Pantry (left Hand) |
|
$ 319.27 | |||||
| 20 | W10432697 | Insulation, Sideplate |
|
$ 13.17 | |||||
| 21 | W11315181 | Plate, Crisper (left Hand) |
|
$ 72.12 | |||||
| 22 | W10530316 | Plate, Side |
|
$ 24.69 | |||||
| 23 | W10467415 | Plate, Crisper Front |
|
$ 65.06 | |||||
| 24 | W10530307 | Track, Center |
|
$ 80.34 | |||||
| 25 | W11233912 | Slide, Crisper (Replaces: W10248819) |
|
$ 255.99 | |||||
| 26 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 27 | W10530315 | Support, Crisper |
|
$ 15.30 | |||||
| 28 | W10423560 | Screw |
|
- | |||||
| 29 | W11549360 | Assembly, Platter Shelf (Replaces: W11457209) |
|
$ 189.95 | |||||
| 30 | W11228263 | Glass, Platter (Replaces: W11169584) |
|
$ 227.86 | |||||
| 31 | W11228264 | Assembly, Pantry Front Cover (Replaces: W11124643) |
|
$ 103.12 | |||||
| 32 | WPW10554285 | Cover, Pantry Top (Replaces: W10554285) |
|
$ 153.57 | |||||
| 33 | W11228266 | Housing, Pantry Temperature Control (Replaces: W11210629) |
|
- | |||||
| 34 | WPW10248856 | Bucket, Gallon (Replaces: W10248856) |
|
Immediately | $ 75.09 | ||||
| 16A | W11133648 | Rail, Side (right Hand) |
|
$ 125.60 | |||||
| 18A | W11225684 | Sideplate, Pantry (right Hand) (Replaces: W11124810) |
|
$ 89.07 | |||||
| 19A | W11759682 | Slide, Pantry (right Hand) (Replaces: W10499294) |
|
$ 62.90 | |||||
| 21A | W11315180 | Plate, Crisper (right Hand) |
|
$ 22.46 |
