01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts

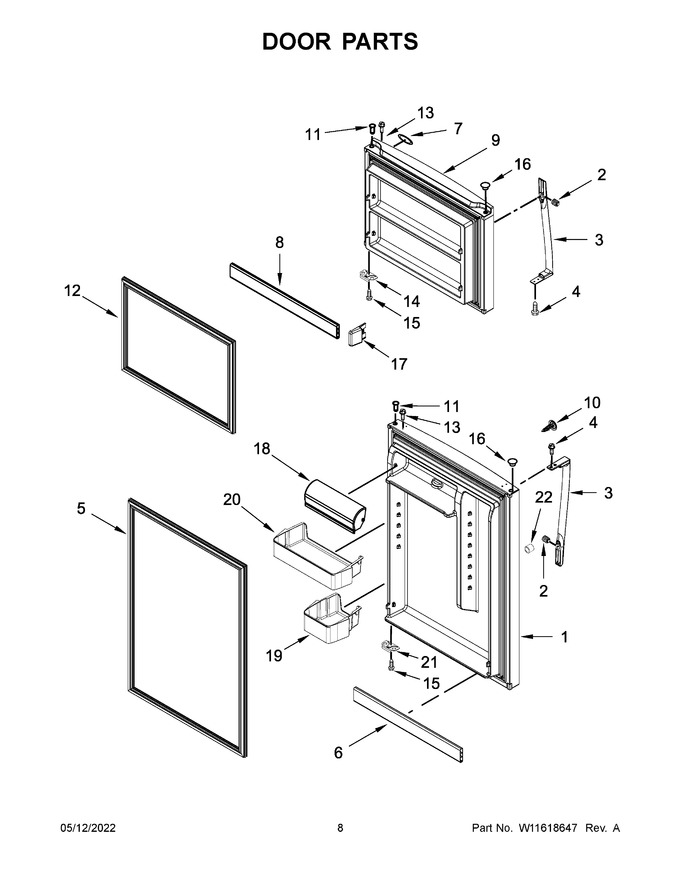

05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10672970 | Refrigerator Door (includes Door Gasket) (black) (Replaces: W10672970) |
|
$ 652.31 | |||||
| 2 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.12 | ||||
| 3 | W10839425 | Handle, Door (black) (Replaces: W10656973) |
|
$ 153.05 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 5 | W11240749 | Gasket, Door (black) (Replaces: W10678768) |
|
Immediately | $ 270.62 | ||||
| 6 | W10592149 | Trim, Door |
|
$ 85.62 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 58.63 | ||||
| 8 | W10592151 | Trim, Door |
|
$ 83.99 | |||||
| 9 | LW10672964 | Freezer Door (includes Door Gasket) (black) (Replaces: W10672964) |
|
$ 650.96 | |||||
| 10 | W10830983 | Plug, Hole (black) (Replaces: W10663737) |
|
$ 17.59 | |||||
| 11 | W11189115 | Thimble (black) (Replaces: W10334042) |
|
Immediately | $ 11.44 | ||||
| 12 | W11229610 | Gasket, Door (black) (Replaces: W10667843) |
|
Immediately | $ 270.62 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.77 | |||||
| 16 | WP2212651 | Plug, Hole (black) (Replaces: 2212651) |
|
Immediately | $ 21.79 | ||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 50.11 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 30.91 | |||||
| 19 | WPW10308867 | Bin Short (Replaces: W10308867) |
|
$ 66.46 | |||||
| 20 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
$ 80.18 | |||||
| 21 | W11402852 | Bracket, Door Stop (Replaces: W10638692) |
|
$ 61.93 | |||||
| 22 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 14.50 | |||||
| 10A | W10830982 | Plug, Hole (grey) (Replaces: W10663739) |
|
Immediately | $ 17.59 | ||||
| 11A | W11676573 | Thimble (grey) (Replaces: W10492022) |
|
$ 13.33 | |||||
| 12A | W11574983 | Gasket, Door (grey) (Replaces: W11030682) |
|
$ 83.13 | |||||
| 16A | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 1A | LW10672972 | Refrigerator Door (includes Door Gasket) (stainless) (Replaces: W10672972) |
|
$ 758.65 | |||||
| 3A | W10837029 | Handle, Door (stainless) (Replaces: W10653471) |
|
Immediately | $ 201.54 | ||||
| 5A | W11784834 | Gasket, Door (grey) (Replaces: W11030683) |
|
Immediately | $ 201.02 | ||||
| 9A | LW10672966 | Freezer Door (includes Door Gasket) (stainless) (Replaces: W10672966) |
|
$ 865.77 |
