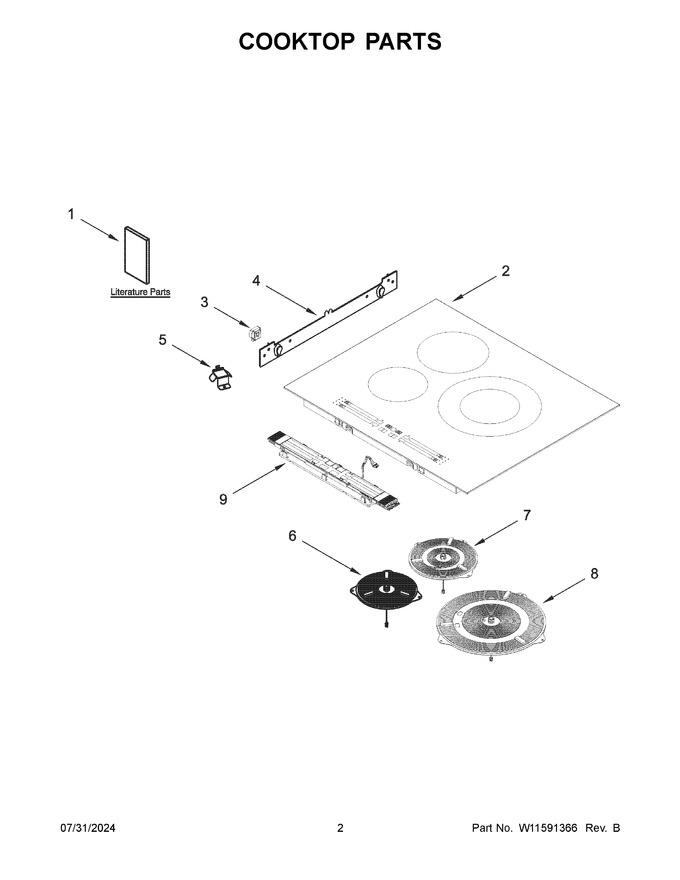

02 - Cooktop Parts
03 - Interior Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11362914 | Installation Instructions |
|
- | |||||
| 2 | W11638077 | Cooktop, Glass (Replaces: W11267462) |
|
Immediately | $ 1,091.53 | ||||
| 3 | W11495019 | Cooktop Spring (Replaces: W11279477) |
|
Immediately | $ 36.23 | ||||
| 4 | W11495626 | Cooktop Support Bracket (Replaces: W11279478) |
|
Immediately | $ 77.03 | ||||
| 5 | W11302457 | Filter Support |
|
- | |||||
| 6 | W11560534 | Element (6 Inch) (left Front) (Replaces: W11429950) |
|
Immediately | $ 178.66 | ||||
| 7 | W11560536 | Element (7 Inch) (left Rear) (Replaces: W11429951) |
|
Immediately | $ 180.08 | ||||
| 8 | W11560537 | Element (8.75 Inch) (right Front) (Replaces: W11429956) |
|
Immediately | $ 203.36 | ||||
| 9 | W11591732 | Hmi Board (Replaces: W11524570) |
|
$ 551.72 | |||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11362924 | Owner's Manual |
|
- | |||||
| 1C | W11362961 | Tech Sheet |
|
- |
