SELECT A DIAGRAM

01 - Cover Sheet

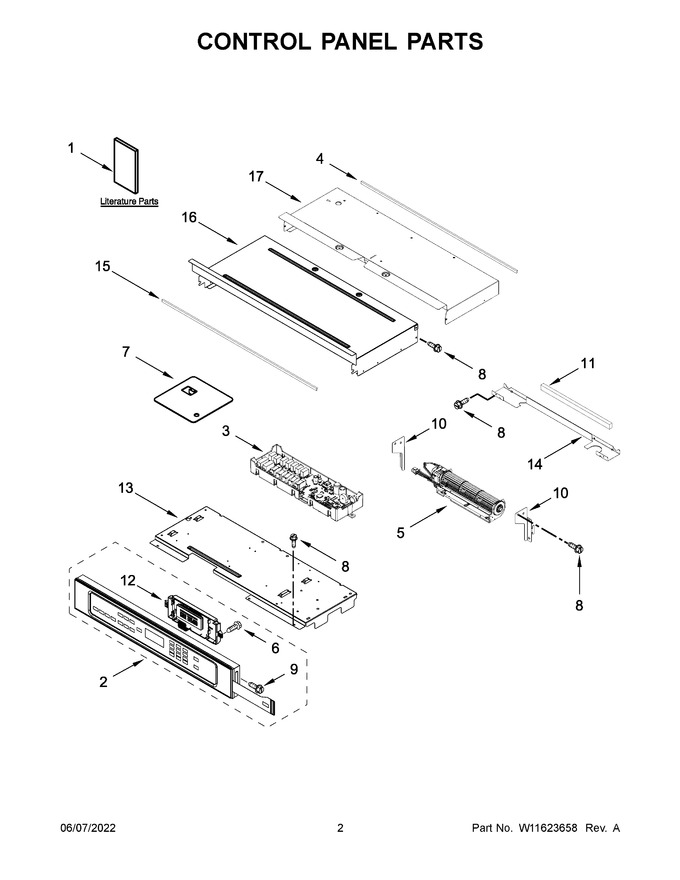

02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11340821		Owner's Manual		Appelez-nous	-
2	W11624798		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11302699)		Appelez-nous	-
3	W11598231		Control, Maxwell   (Replaces: W11249189)				$ 334.66
4	W10728475		Gasket, Rubber				$ 34.32
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 349.43
6	7101P40360		Screw		Appelez-nous	-
7	W11819353		Cover, Wifi   (Replaces: W11308343)		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W11602625		Screw (black)   (Replaces: W11339492)				$ 13.25
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.33
12	W10803991		Interface (maxwell), User Board   (Replaces: W10752315)			Immediately	$ 378.04
13	W11179509		Tray, Electronic		Appelez-nous	-
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W11226314		Gasket, Rubber   (Replaces: W11162063)		Appelez-nous	-
16	W11821591		Cover, 30" Chassis Top Front   (Replaces: W11244445)		Appelez-nous	-
17	W11223325		Cover, 30" Chassis Top Back				$ 77.19
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11418533		Quick Start Guide		Appelez-nous	-
1B	W11340911		Tech Sheet		Appelez-nous	-
NI	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 208.52
NI	4450800		Screw, Grounding				$ 12.12
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 55.62
NI	W11132988		Strap, Lead Ground		Appelez-nous	-
NI	W10655464		Bracket, Harness				$ 36.64
NI	W11607072		Bag, Hardware   (Replaces: W11547720)			Immediately	$ 13.85
NI	W11245675		Harness, Main		Appelez-nous	-
NI	W10487999		Clip, Harness				$ 19.01
NI	4448664		Clamp, Conduit				$ 19.27
