View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts

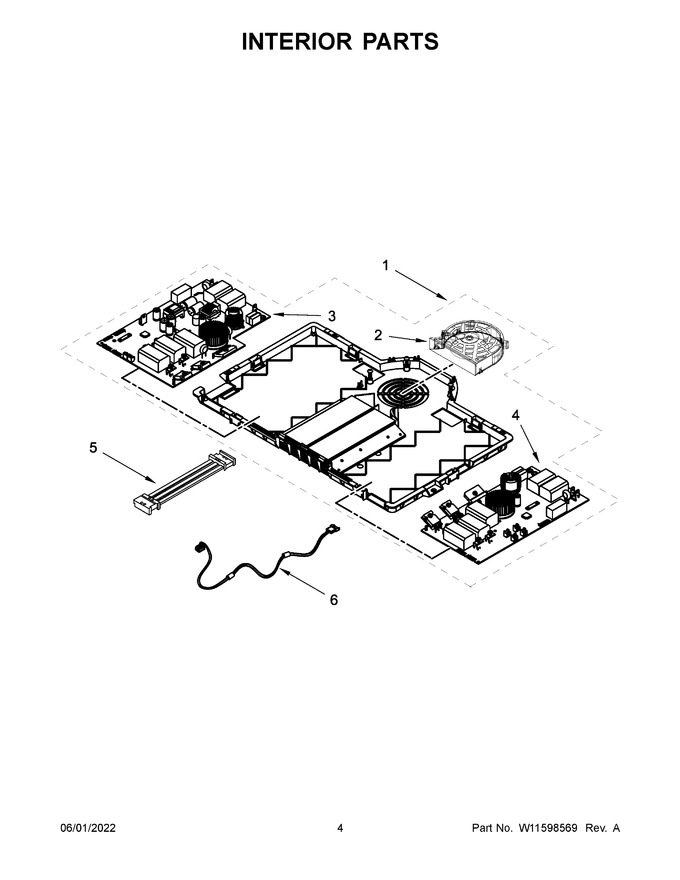

03 - Interior Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11814882 | Module Assembly (Replaces: W11470113) |
|
Immediately | $ 635.96 | ||||
| 2 | W11246545 | Blower Assembly |
|
Immediately | $ 279.85 | ||||
| 3 | W11591149 | Power Board (ascari) (Replaces: W11474692) |
|
$ 348.99 | |||||
| 4 | W11595239 | Power Board (farina) (Replaces: W11470136) |
|
- | |||||
| 5 | W11249830 | Communication Harness (ipc1 To Ipc2) |
|
$ 47.65 | |||||
| 6 | W11347982 | Jumper Harness (hmi To Ipc) |
|
Immediately | $ 53.91 |
