01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

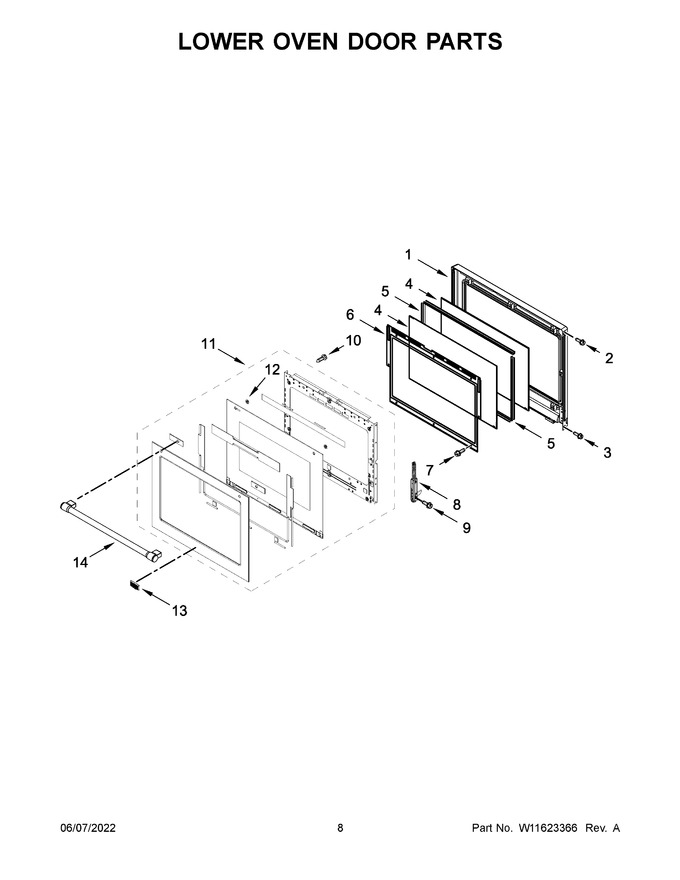

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768649 | Liner Assembly (Replaces: W11302587) |
|
Immediately | $ 273.43 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 13.29 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
Immediately | $ 222.94 | ||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11302730) |
|
Immediately | $ 64.88 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 73.38 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11700313 | Hinge, Door (left) (Replaces: W11296036) |
|
Immediately | $ 103.39 | ||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 10 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 13.28 | ||||
| 11 | W11624762 | Door Assembly (stainless) (Replaces: W11303266) |
|
- | |||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 13 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 14 | W10912640 | Handle Assembly (stainless) (Replaces: W10834521) |
|
$ 204.62 | |||||
| 8A | W11699927 | Hinge, Door (right) (Replaces: W11296037) |
|
Immediately | $ 103.39 |
