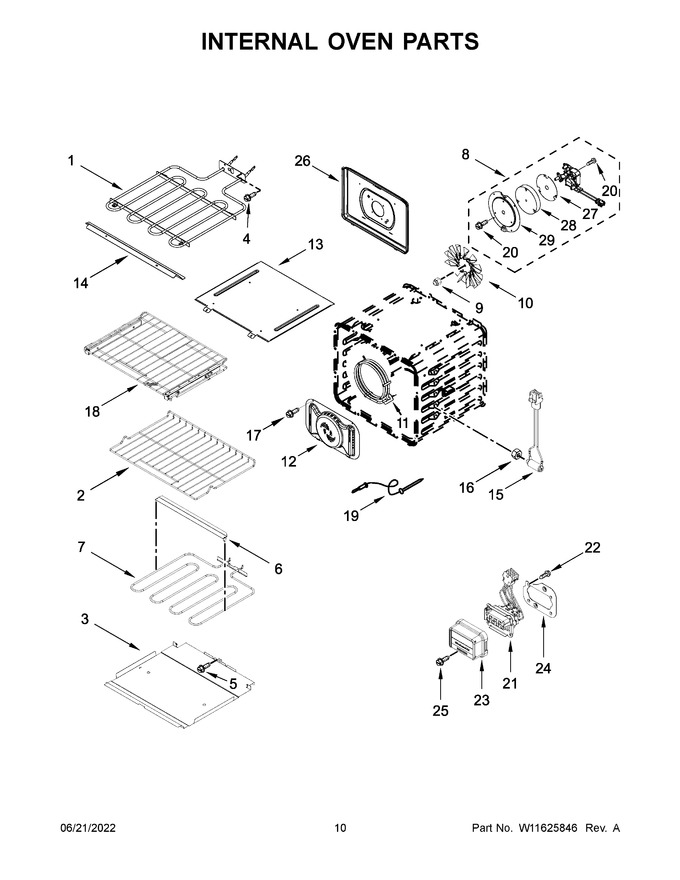

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598122 | Element, Broil (Replaces: W11238159) |
|
$ 117.62 | |||||
| 2 | WPW10554526 | Rack, Oven (Replaces: W10554526) |
|
Immediately | $ 164.66 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 176.25 | |||||
| 4 | 7101P43460 | Screw |
|
- | |||||
| 5 | 7101P42660 | Screw |
|
- | |||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 42.72 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W11292248) |
|
Immediately | $ 131.81 | ||||
| 8 | W11602628 | Convect Motor Assembly (Replaces: W11244895) |
|
$ 360.40 | |||||
| 9 | W11548755 | Nut, Acorn (lh) (Replaces: W11433702) |
|
$ 13.84 | |||||
| 10 | W11548753 | Blade, Fan (Replaces: W11425715) |
|
Immediately | $ 141.87 | ||||
| 11 | W11678579 | Element, Convection (Replaces: W10546519) |
|
Immediately | $ 108.90 | ||||
| 12 | W11234763 | Baffle, Bow Tie (Replaces: W10918895) |
|
$ 208.17 | |||||
| 13 | W11598121 | Reflector, Broil (Replaces: W11235537) |
|
$ 55.97 | |||||
| 14 | W10588737 | Shield, Broil Front |
|
$ 94.86 | |||||
| 15 | W11821374 | Jack, Meat Probe (Replaces: W11252826) |
|
$ 69.46 | |||||
| 16 | W11231343 | Nut, Locking (Replaces: W11033111) |
|
$ 12.12 | |||||
| 17 | W10739592 | Screw |
|
- | |||||
| 18 | W11718046 | Rack, Sliding (Replaces: W10554531) |
|
Immediately | $ 186.83 | ||||
| 19 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 20 | W10850807 | Screw (Replaces: W10720084) |
|
$ 6.99 | |||||
| 21 | W11291121 | Connector, Plug Assembly Accessory (Replaces: W10903862) |
|
- | |||||
| 22 | WPY706189 | Screw (Replaces: W11249635) |
|
Immediately | $ 6.80 | ||||
| 23 | W11291122 | Cover, Connector (Replaces: W10903893) |
|
- | |||||
| 24 | W11307587 | Plate, Cavity Backer |
|
- | |||||
| 25 | W11291186 | Screw (Replaces: W11236393) |
|
- | |||||
| 26 | W11198517 | Back, Cavity Baffle Bowtie |
|
- | |||||
| 27 | W11602629 | Plate, Convect Motor (Replaces: W11251715) |
|
- | |||||
| 28 | W11706806 | Insulation, Convect Motor (Replaces: W11251716) |
|
- | |||||
| 29 | W11602630 | Cover, Convect Plate (Replaces: W11235449) |
|
- |
