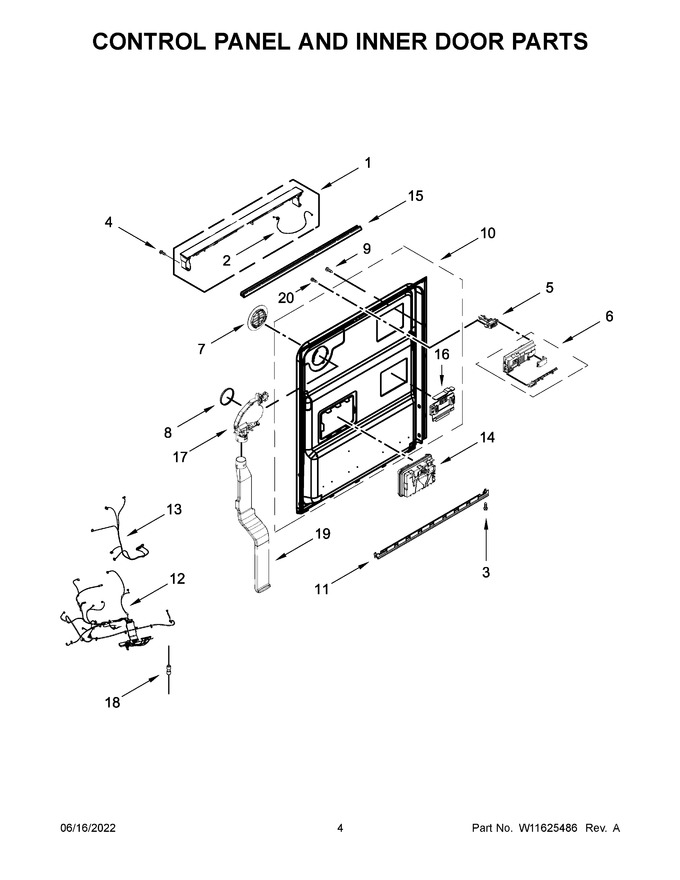

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11632700 | Console Cap (black) (Replaces: W11500349) |
|
Immediately | $ 312.79 | ||||
| 2 | W11690158 | Jumper, Ui (Replaces: W11336943) |
|
$ 15.93 | |||||
| 3 | W11627527 | Screw (Replaces: W11258418) |
|
Immediately | $ 13.25 | ||||
| 4 | WPW10213953 | Screw (long) (Replaces: W10711884) |
|
Immediately | $ 6.80 | ||||
| 5 | W11412299 | Latch Assembly (includes Switch) (Replaces: W11091934) |
|
Immediately | $ 26.73 | ||||
| 6 | W11632704 | Control, Electronic (Replaces: W11591730) |
|
$ 339.53 | |||||
| 7 | W11545290 | Bezel, Vent (also Order Gasket) (Replaces: W11025634) |
|
Immediately | $ 13.38 | ||||
| 8 | W11545539 | Gasket, Vent (Replaces: W11184028) |
|
Immediately | $ 8.72 | ||||
| 9 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 7.38 | ||||
| 10 | W11559689 | Inner Door Assembly (Replaces: W11098822) |
|
$ 353.75 | |||||
| 11 | W11664713 | Seal, Door Bottom (Replaces: W11484890) |
|
Immediately | $ 54.70 | ||||
| 12 | W11685752 | Wiring Harness, Main (includes Thermostat & Fuse) (Replaces: W11213032) |
|
Immediately | $ 254.04 | ||||
| 13 | W11678803 | Wiring Harness, Inner Door (Replaces: W11084867) |
|
Immediately | $ 20.16 | ||||
| 14 | W11412300 | Dispenser Assembly (Replaces: W11092649) |
|
Immediately | $ 223.92 | ||||
| 15 | W11213719 | Seal, Console/door (Replaces: W11265187) |
|
Immediately | $ 155.49 | ||||
| 16 | W11088985 | Hanger, Control |
|
$ 30.81 | |||||
| 17 | W11414073 | Vent Assembly (includes Fan) (also Order Gasket) (Replaces: W11038720) |
|
Immediately | $ 178.71 | ||||
| 18 | W11397505 | Fuse, In-line |
|
$ 150.18 | |||||
| 19 | W11038734 | Duct, Vent |
|
$ 77.60 | |||||
| 20 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 6.80 |
