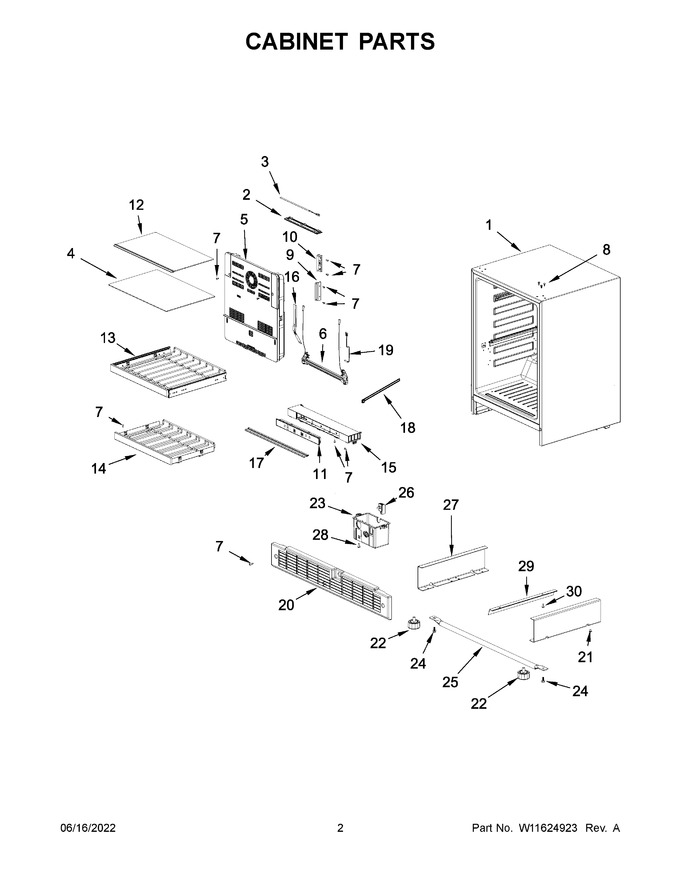

02 - Cabinet Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W11312450 | Cover, Led |
|
- | |||||
| 3 | W11263841 | Led Assembly (Replaces: W11312453) |
|
$ 142.35 | |||||
| 4 | W11311791 | Shelf, Glass (Replaces: W11311383) |
|
- | |||||
| 5 | W11312455 | Assembly, Fan Cover (includes Fan Motor,and Sensor) |
|
$ 240.29 | |||||
| 6 | W11263842 | Defrost Holder And Heater |
|
- | |||||
| 7 | W11675284 | Screw (Replaces: W11371095) |
|
$ 14.35 | |||||
| 8 | 4344796 | Screw |
|
$ 15.14 | |||||
| 9 | W11311388 | Shelf, Support |
|
- | |||||
| 10 | W11311389 | Support |
|
- | |||||
| 11 | W11311792 | Control Assembly (Replaces: W11311645) |
|
Immediately | $ 193.59 | ||||
| 12 | W11266373 | Glass Shelf (Replaces: W11263886) |
|
- | |||||
| 13 | W11312493 | Wine Rack |
|
$ 239.25 | |||||
| 14 | W11312494 | Wine Rack, Lower |
|
$ 233.86 | |||||
| 15 | W11312540 | Box, Control |
|
Immediately | $ 225.31 | ||||
| 16 | W11476539 | Temperature Fuse |
|
- | |||||
| 17 | W11312550 | Trim, Sash |
|
- | |||||
| 18 | 4344829 | Tie, Cable |
|
- | |||||
| 19 | W11266076 | Sensor, Defrost (Replaces: W11263884) |
|
$ 109.50 | |||||
| 20 | W11239541 | Grille |
|
Immediately | $ 71.96 | ||||
| 21 | W11371101 | Screw |
|
- | |||||
| 22 | W11106296 | Leg, Leveling (Replaces: 4344763) |
|
$ 17.13 | |||||
| 23 | W11476540 | Box, Switch (Replaces: W11492236) |
|
$ 51.82 | |||||
| 24 | W11371100 | Screw |
|
- | |||||
| 25 | W11265575 | Brace |
|
- | |||||
| 26 | W11266082 | Switch, Door (Replaces: W11265587) |
|
Immediately | $ 36.73 | ||||
| 27 | W11313093 | Support, Side |
|
- | |||||
| 28 | W11371097 | Screw |
|
- | |||||
| 29 | W11265577 | Seal, Condenser |
|
- | |||||
| 30 | W11371103 | Screw |
|
- |
