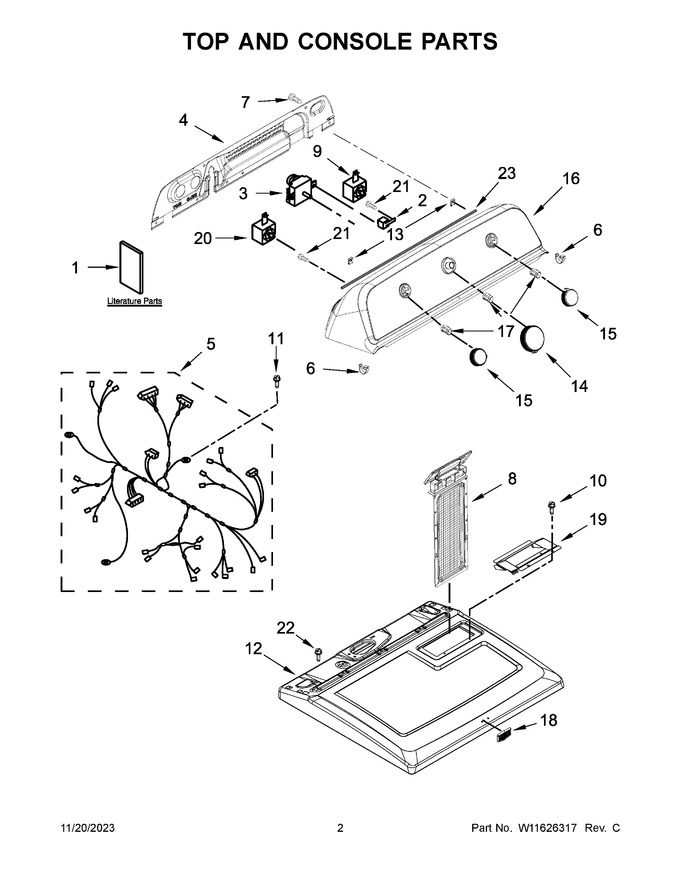

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11555817		Owners Manual		Appelez-nous	-
2	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
3	W11685947		Timer, Electric   (Replaces: W11566735)			Immediately	$ 93.65
4	W10775189		Panel, Rear				$ 351.12
5	W11485016		Harness, Main				$ 225.36
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 7.62
8	W11778254		Lint Screen (white)   (Replaces: W11538108)			Immediately	$ 49.17
9	W11625516		Rotary Switch, Pts   (Replaces: W11566917)			Immediately	$ 69.24
10	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
11	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 244.23
13	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
14	W11708423		Knob   (Replaces: W11677925)			Immediately	$ 29.48
15	W11625514		Knob, Small   (Replaces: W11398762)			Immediately	$ 33.18
16	W11625515		Assembly, Console (white)   (Replaces: W11576331)				$ 319.52
17	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
18	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
19	W10662472		Collar, Lint Chute				$ 70.08
20	W11625517		Rotary Switch, Tpa   (Replaces: W11566916)				$ 70.05
21	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
22	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
23	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
1A	W11492875		Tech Sheet		Appelez-nous	-
1B	W11466175		Quick Start Guide		Appelez-nous	-
